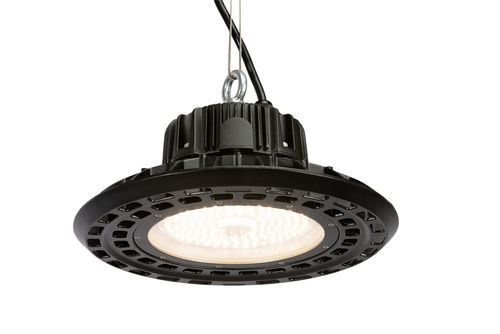

Hanging light fixture JNFB12-300S-4000-A1-IP65-DIMLEDflatIP65
Add to favorites
Compare this product
Characteristics
- Type
- hanging
- Light source
- LED
- Shape
- flat
- Protection class
- IP65
- Application
- industrial
- Material
- aluminum
- Color
- black
- Style
- contemporary
- Dimmable
- dimmable
- Number of lights
- single
- Other characteristics
- high bay, IK08, with reflector
- Height
Max.: 167 mm
(7 in)Min.: 167 mm
(7 in)- Length
Max.: 400 mm
(16 in)Min.: 400 mm
(16 in)- Width
Max.: 400 mm
(16 in)Min.: 400 mm
(16 in)- Power
Max.: 300 W
Min.: 300 W
- Luminous flux
Max.: 48,000 lm
Min.: 48,000 lm
- Color temperature
Max.: 4,000 K
Min.: 4,000 K
- Color rendering index (CRI)
Max.: 100 unit
Min.: 70 unit
Description
Short description
300 Watt LED flat high bay lamp with original Philips Lumileds LEDs and Meanwell HLG-320H driver, IP65 rated. Dimmable. Replaces 400 W metal halide/HID/HPS. Integrated 72°x72° reflector for symmetric distribution.
Features
Product Specifications (table)
Product SKU: JNFB12-300S-4000-A1-IP65-DIM
Power Consumption: 300 W
Input Voltage: 100-305 V
Beam Angle (°): 72°x72°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 48,000 lm
Color Temperature (K): 4000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
LED Driver Brand: Meanwell HLG-320H
Surge Protection: 10 kV
Input Voltage Range: 100~305 V AC
Input Cable Type: H07RN-F 3G1.5
Fixture Height (mm): 167 mm
Fixture Length (mm): 400 mm
Fixture Width (mm): 400 mm
Number of Lamps: 1 lamp(s)
Beam Angle Range: 100+
Beam Angle Format: Symmetric
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 90% RH
Lifespan (Hours): 50,000 hours
Packaging & Shipping (table)
Product Dimensions (mm): 400 x 400 x 167 mm
Net Weight (kg): 4.6 kg
Export Carton Dimensions (mm): 360 x 360 x 205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 6.8 kg
Specification details
300 Watt flat LED high bay lamp equipped with Philips Lumileds and Meanwell driver, offering IP65 protection and dimmable control. Designed to replace 400 W HID/HPS fittings while delivering 48,000 lm and symmetric 72°x72° distribution.
Technical specifications
300 Watt LED flat high bay lamp with original Philips Lumileds LEDs and Meanwell HLG-320H driver, IP65 rated. Dimmable. Replaces 400 W metal halide/HID/HPS. Integrated 72°x72° reflector for symmetric distribution.
Features
- Flat bay design with integrated reflector (72°x72°)
- Original Philips Lumileds LEDs
- Meanwell HLG-320H LED driver
- IP65 dust and water protection
- Dimmable
- High surge protection (10 kV)
- Die-cast aluminum housing, black
Product Specifications (table)
Product SKU: JNFB12-300S-4000-A1-IP65-DIM
Power Consumption: 300 W
Input Voltage: 100-305 V
Beam Angle (°): 72°x72°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 48,000 lm
Color Temperature (K): 4000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
LED Driver Brand: Meanwell HLG-320H
Surge Protection: 10 kV
Input Voltage Range: 100~305 V AC
Input Cable Type: H07RN-F 3G1.5
Fixture Height (mm): 167 mm
Fixture Length (mm): 400 mm
Fixture Width (mm): 400 mm
Number of Lamps: 1 lamp(s)
Beam Angle Range: 100+
Beam Angle Format: Symmetric
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 90% RH
Lifespan (Hours): 50,000 hours
Packaging & Shipping (table)
Product Dimensions (mm): 400 x 400 x 167 mm
Net Weight (kg): 4.6 kg
Export Carton Dimensions (mm): 360 x 360 x 205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 6.8 kg
Specification details
300 Watt flat LED high bay lamp equipped with Philips Lumileds and Meanwell driver, offering IP65 protection and dimmable control. Designed to replace 400 W HID/HPS fittings while delivering 48,000 lm and symmetric 72°x72° distribution.
Technical specifications
- SKU: JNFB12-300S-4000-A1-IP65-DIM
- Power: 300 W
- Voltage: 100-305 V (100~305 V AC)
- Driver: Meanwell HLG-320H
- LEDs: Philips Lumileds
- Lumens: 48,000 lm
- Colour Temperature: 4000 K
- CRI: >70
- Beam Angle: 72°x72° (symmetric)
- IP rating: IP65
- IK rating: IK08
- Power factor: >0.95
- Surge protection: 10 kV
- Housing: Die-cast aluminum, black
- Dimensions (mm): 400 x 400 x 167
- Net weight: 4.6 kg
- Working temp: -20°C to 45°C
- Lifespan: 50,000 hours
