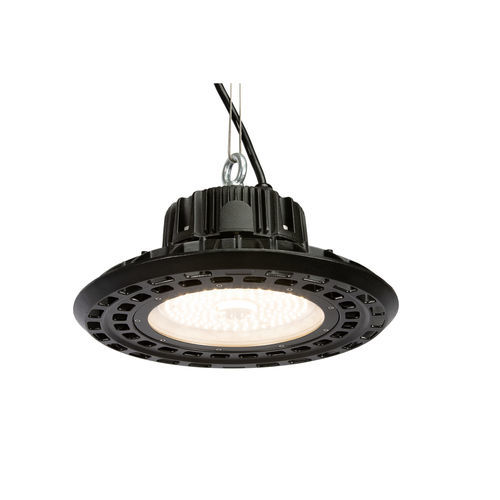

Hanging light fixture JNFB12-300S-6500-A1-IP65-ND

LEDflatIP65

Product description
300 W LED flat high bay lamp equipped with Philips Lumileds LEDs and a Meanwell HLG-320H driver, IP65 rated for dust and water protection. Non-dimmable. Designed to replace 400 W metal halide/HID/HPS fixtures while providing high lumen output and a compact flat form factor with an integrated 72°×72° symmetric reflector. Suitable for industrial warehouses, production halls and large indoor workspaces. Rated lifespan 50,000 hours.

Key features

• Integrated 72°×72° symmetric reflector
• Philips Lumileds LEDs
• Meanwell HLG-320H LED driver
• IP65 protection against dust and water
• Non-dimmable
• High lumen output replacing 400 W metal halide/HID/HPS
• Surge protection 10 kV
• Die-cast aluminum housing, black color

Technical specifications

• Product SKU: JNFB12-300S-6500-A1-IP65-ND
• Power Consumption: 300 W
• Input Voltage: 100-305 V AC
• Input Voltage Range: 100~305 V AC
• LED Driver Brand: Meanwell HLG-320H
• LED Type: Philips Lumileds
• Total Lumens Output: 48,000 lm
• Colour Temperature (K): 6500 K
• Color Rendering Index (CRI): >70
• Beam Angle: 72°×72° (Symmetric)
• Beam Angle Range: 100+
• IP Rating: IP65
• IK Impact Rating: IK08
• Dimming Capability: Non-dimmable
• Power Factor: >0.95
• Input Frequency: 50/60 Hz
• Surge Protection: 10 kV
• Input Cable Type: H07RN-F 3G1.5
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Fixture Height: 167 mm
• Fixture Length: 400 mm
• Fixture Width: 400 mm
• Number of Lamps: 1 lamp(s)
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan (Hours): 50,000 hours
• Product Dimensions (mm): 400 x 400 x 167 mm
• Net Weight (kg): 4.6 kg
• Export Carton Dimensions (mm): 360 x 360 x 205 mm
• Products per Carton: 1
• Export Carton Gross Weight (kg): 6.8 kg
