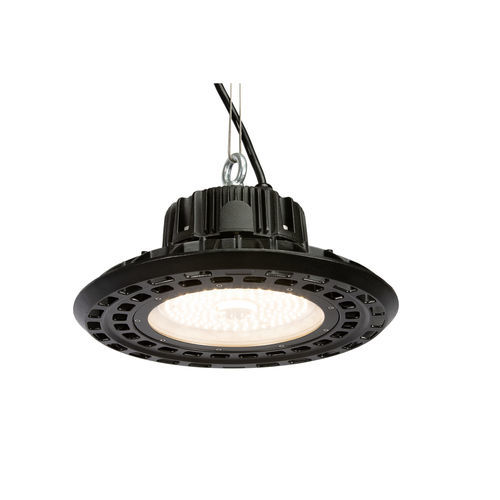

Industrial design ceiling light JNFB6-070S-5700-A1-IP65-DIM

flataluminumLED

Product overview
70 W flat high bay LED luminaire, model JNFB6-070S-5700-A1-IP65-DIM, fitted with Philips Lumileds LEDs and a Meanwell ELG-100 driver. Symmetric integrated 72°x72° reflector, cool white 5700 K, IP65 rated and dimmable. Designed to replace 200 W metal halide/HID/HPS fixtures in industrial and commercial high-ceiling applications.

Key features

• Power: 70 W
• LEDs: Philips Lumileds
• Driver: Meanwell ELG-100 (dimmable)
• Integrated symmetric reflector 72°x72°
• Light output: 12,400 lm
• Colour temperature: 5700 K (cool white)
• CRI: >70
• Ingress protection: IP65
• Impact resistance: IK08
• Power factor: >0.95
• Surge protection: 10 kV
• Housing: die-cast aluminum, black
• Operating temperature: -20°C to 45°C
• Lifespan: 50,000 hours

Technical specifications

• SKU: JNFB6-070S-5700-A1-IP65-DIM
• Power consumption: 70 W
• Input voltage: 100–305 V AC
• Input frequency: 50/60 Hz
• LED type: Philips Lumileds
• LED driver: Meanwell ELG-100
• Total luminous flux: 12,400 lm
• Beam angle: 72°x72° (symmetric)
• Colour temperature: 5700 K
• CRI: >70
• IP rating: IP65
• IK rating: IK08
• Dimming: Yes
• Surge protection: 10 kV
• Power factor: >0.95
• Housing material: Die-cast aluminum (black)
• Fixture dimensions (L×W×H): 280 × 280 × 159.5 mm
• Net weight: 2.6 kg
• Input cable: H07RN-F 3G1.0
• Number of lamps: 1
• Working humidity: 10%–90% RH
• Lifespan: 50,000 hours

Applications

• Warehouses and logistics centres
• Production halls and factories
• Workshops and assembly areas
• Indoor sports facilities and exhibition spaces
• Retail and distribution centres with high ceilings

Packaging & handling

• Export carton dimensions: 360 × 360 × 205 mm
• Products per carton: 1
• Export carton gross weight: 4.2 kg
