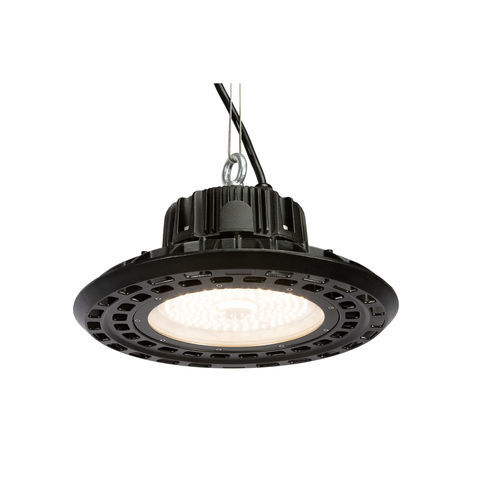

Flat ceiling light JNFB8-120S-5000-A1-IP65-ND

aluminumLEDnot dimmable

Product Summary
120 Watt LED flat high bay lamp equipped with original Philips Lumileds LEDs and Meanwell driver(s). IP65 rated, non-dimmable. Designed to replace 300 W metal halide/HID/HPS luminaires. Includes an integrated 72°×72° reflector for controlled symmetric distribution.

Features

• Integrated 72°×72° reflector
• Original Philips Lumileds LEDs
• Meanwell ELG-150 LED driver
• IP65 rated enclosure
• IK08 impact rating
• Non-dimmable
• High total lumen output: 21,800 lm
• High power factor >0.95

Packaging & Shipping

• Product Dimensions: 340 x 340 x 166 mm
• Net Weight: 3.6 kg
• Export Carton Dimensions: 360 x 360 x 205 mm
• Products per Carton: 1
• Export Carton Gross Weight: 4.2 kg

Technical specifications

• Product SKU: JNFB8-120S-5000-A1-IP65-ND
• Power Consumption: 120 W
• Input Voltage / Input Voltage Range: 100-305 V (100~305V AC)
• Input Frequency: 50/60 Hz
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell ELG-150
• Total Lumens Output: 21800 lm
• Colour Temperature (K): 5000 K
• Colour Rendering Index (CRI): >70
• Beam Angle: 72° x 72°
• Beam Angle Range: 100+
• Beam Angle Format: Symmetric
• IP Rating: IP65
• IK Impact Rating: IK08
• Dimming Capability: Non-dimmable
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Power Factor: >0.95
• Surge Protection: 10 kV
• Input Cable Type: H07RN-F 3G1.0
• Fixture Height: 166 mm
• Fixture Length: 340 mm
• Fixture Width: 340 mm
• Number of Lamps: 1 lamp(s)
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan (Hours): 50,000 hours
