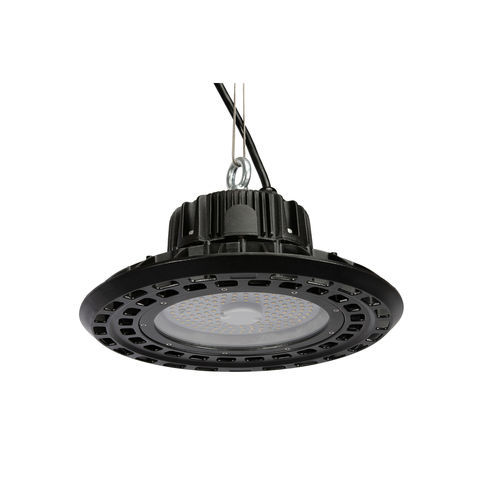

Hanging light fixture JNFB8-120S-5700-A1-IP65-ND

LEDflathigh

120 Watt flat high bay LED luminaire designed for industrial and commercial high-bay installations. Delivers 21,800 lm and is intended as a retrofit replacement for 300 W metal halide/HID/HPS fixtures. The product incorporates Philips Lumileds LEDs, a Meanwell ELG-150 driver, an integrated 72×72° reflector and an IP65 die-cast aluminium housing.

Key features

• Flat high bay form factor with integrated 72° x 72° reflector for controlled distribution.
• Philips Lumileds LEDs for consistent colour and high efficacy.
• Meanwell ELG-150 LED driver, 100–305 V AC input and 10 kV surge protection.
• IP65 ingress protection and IK08 impact rating suitable for demanding indoor/outdoor environments.
• Factory non-dimmable configuration (dimmable options available on request).
• Direct replacement solution for 300 W metal halide/HID/HPS luminaires.
• Operating ambient temperature: -20°C to 45°C; relative humidity: 10%–90% RH.

Technical specifications

• Product SKU: JNFB8-120S-5700-A1-IP65-ND
• Power consumption: 120 W
• Input voltage / range: 100–305 V AC
• Input frequency: 50/60 Hz
• LED type: Philips Lumileds
• LED driver brand: Meanwell ELG-150
• Total luminous flux: 21,800 lm
• Colour temperature (CCT): 5700 K
• Colour rendering index (CRI): >70
• Beam angle: 72° x 72° (symmetric)
• Beam angle range: 100+ (as listed)
• Dimming capability: Non-dimmable
• Power factor: >0.95
• Surge protection: 10 kV
• IK impact rating: IK08
• IP rating: IP65
• Housing material: Die-cast aluminium
• Housing colour: Black
• Input cable type: H07RN-F 3G1.0
• Fixture dimensions (L×W×H): 340 × 340 × 166 mm
• Fixture height: 166 mm
• Fixture length: 340 mm
• Fixture width: 340 mm
• Net weight: 3.6 kg
• Export carton dimensions (mm): 360 × 360 × 205
• Products per carton: 1
• Export carton gross weight: 4.2 kg
• Number of lamps: 1 lamp(s)
• Lifespan: 50,000 hours
