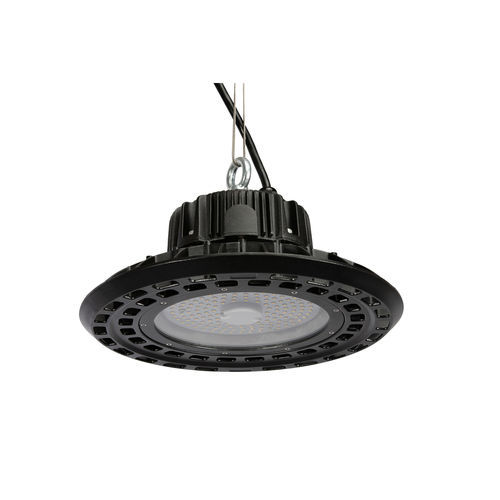

Industrial design ceiling light JNFB9-150S-6500-A1-IP65-DIM

flataluminumHID

This flat high-bay LED luminaire is designed for commercial and industrial ceilings with IP65 protection, a 72°x72° integrated reflector and dimmable control options. It uses Philips Lumileds modules and a Meanwell HLG-240H LED driver for efficient operation and extended service life.

Key features

• Flat high-bay form factor with integrated reflector (72°x72° beam)
• Uses original Philips Lumileds LED modules
• Equipped with Meanwell driver(s) (HLG-240H)
• IP65-rated housing for dust and water protection
• Dimmable for adjustable lighting levels
• Replacement for 400 Watt metal halide / HID / HPS fixtures
• Die-cast aluminum housing in black with IK08 impact resistance

Technical specifications

• Product SKU: JNFB9-150S-6500-A1-IP65-DIM
• Power Consumption: 150 W
• Input Voltage / Input Voltage Range: 100-305 V AC (100~305V AC)
• Input Frequency: 50/60 Hz
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell HLG-240H
• Total Lumens Output: 26,200 lm
• Colour Temperature (CCT): 6500 K (cool white)
• Color Rendering Index (CRI): >70
• Beam Angle (°): 72° x 72° (symmetric)
• Beam Angle Range: 100+
• IP Rating: IP65
• IK Impact Rating: IK08
• Power Factor: >0.95
• Dimming Capability: Dimmable
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Surge Protection: 10 kV
• Input Cable Type: H07RN-F 3G1.0
• Fixture Dimensions (HxLxW): 166 mm x 340 mm x 340 mm
• Fixture Height: 166 mm
• Fixture Length: 340 mm
• Fixture Width: 340 mm
• Number of Lamps: 1
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan (Hours): 50,000 hours
• Net Weight: 3.7 kg
• Export Carton Dimensions: 360 x 360 x 205 mm
• Products per Carton: 1
• Export Carton Gross Weight: 6.2 kg
