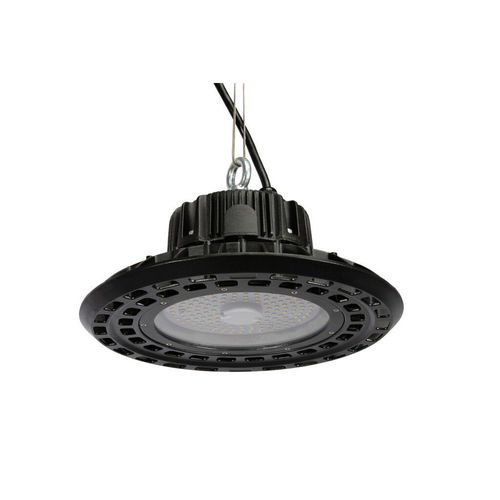

Hanging light fixture JNFB9-150S-6500-A1-IP65-DIM

LEDflatIP65

150 W cool white LED flat high bay lamp designed for industrial and commercial spaces, featuring an integrated 72×72° reflector and an IP65-rated enclosure. The fixture is dimmable, equipped with Philips Lumileds LEDs and a Meanwell HLG-240H driver, and suitable as a retrofit replacement for 400 W metal halide/HID/HPS luminaires.

Technical specifications

• Product SKU: JNFB9-150S-6500-A1-IP65-DIM
• Power Consumption: 150 W
• Input Voltage: 100-305V (Input Voltage Range: 100~305V AC)
• Input Frequency: 50/60 Hz
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell HLG-240H
• Total Lumens Output: 26200 lm
• Colour Temperature (K): 6500 K
• Color Rendering Index (CRI): >70
• Beam Angle (°): 72°x72° (Beam Angle Format: Symmetric; Beam Angle Range: 100+)
• Dimming Capability: Dimmable
• Power Factor: >0.95
• Surge Protection: 10kV
• IK Impact Rating: IK08
• IP Rating: IP65
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Input Cable Type: H07RN-F 3G1.0
• Fixture Dimensions (HxLxW): 166 mm x 340 mm x 340 mm
• Number of Lamps: 1 lamp(s)
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan (Hours): 50,000 hours
• Product Dimensions (mm): 340 x 340 x 166 mm
• Net Weight (kg): 3.7 kg
• Export Carton Dimensions (mm): 360 x 360 x 205 mm
• Products per Carton: 1
• Export Carton Gross Weight (kg): 6.2 kg
