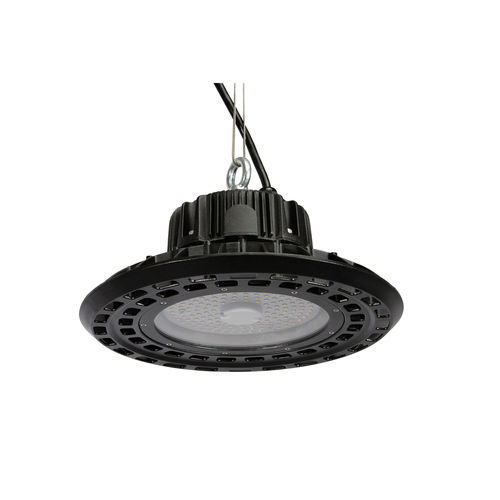

Hanging light fixture JNFB9-150S-5700-A1-IP65-ND

LEDflatIP65

Overview

150 W cool white (5700 K) LED flat high bay luminaire JNFB9-150S-5700-A1-IP65-ND designed for industrial and commercial facilities. Features a symmetric 72×72° integrated reflector for controlled light distribution and serves as an energy-efficient replacement for 400 W metal halide/HID/HPS fixtures. IP65-rated housing and IK08 impact resistance for demanding environments.

Applications

• Warehouses and distribution centres
• Manufacturing plants and production lines
• Logistics hubs and cold storage (non-condensing)
• Workshops and assembly areas
• Indoor sports halls and industrial retail spaces

Technical specifications

• Product SKU: JNFB9-150S-5700-A1-IP65-ND
• Power Consumption: 150 W
• Input Voltage: 100-305V
• Beam Angle (°): 72°x72° (symmetric)
• IP Rating: IP65
• Color Rendering Index (CRI): >70
• LED Type: Philips Lumileds
• Total Lumens Output: 26200 lm
• Colour Temperature: 5700 K
• IK Impact Rating: IK08
• Dimming Capability: Non-dimmable
• Housing Colour: Black
• Power Factor: >0.95
• Input Frequency: 50/60 Hz
• Housing Material: Die-cast Aluminum
• LED Driver Brand: Meanwell HLG-240H
• Surge Protection: 10kV
• Input Cable Type: H07RN-F 3G1.0
• Fixture Height: 166 mm
• Fixture Length: 340 mm
• Fixture Width: 340 mm
• Number of Lamps: 1 lamp(s)
• Beam Angle Range: 100+
• Beam Angle Format: Symmetric
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan (Hours): 50,000 hours
• Net Weight: 3.7 kg
• Export Carton Dimensions (mm): 360 x 360 x 205
• Products per Carton: 1
• Export Carton Gross Weight: 6.2 kg

Installation & compliance

Die-cast aluminum housing with IP65 protection and IK08 impact rating. Fitted with Meanwell HLG-240H driver and H07RN-F input cable. Non-dimmable; input 100-305V 50/60 Hz. Operating range -20°C to 45°C. Includes 10kV surge protection and a symmetric 72×72° optical system for uniform illumination.

Logistics

• Net weight: 3.7 kg
• Export carton: 360 x 360 x 205 mm
• Products per carton: 1
• Gross weight per carton: 6.2 kg
