Hanging light fixture JNFB6-070S-3000-A1-IP65-ND

LEDflatIP65

Short description

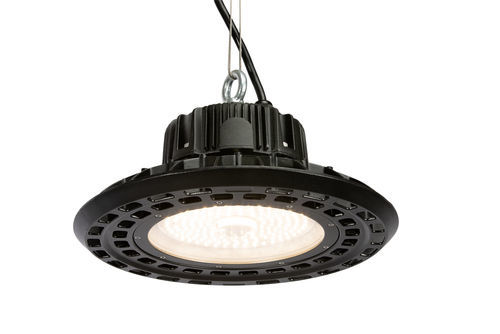

70 W flat LED high bay lamp equipped with Philips Lumileds LEDs and a Meanwell ELG-100 driver. IP65-rated and non-dimmable, with an integrated 72°×72° symmetric reflector. Suitable as a direct replacement for 200 W metal halide/HID/HPS fixtures. Die-cast aluminum housing in black.

Features

• Original Philips Lumileds LEDs
• Meanwell ELG-100 LED driver
• IP65 rated for dust and water protection
• Integrated 72°×72° symmetric reflector
• Non-dimmable
• Replaces 200 W metal halide / HID / HPS fixtures
• Surge protection 10 kV
• Die-cast aluminum housing, black colour
• Power factor >0.95
• Working temperature range -20°C to 45°C

Technical specifications

• Product SKU: JNFB6-070S-3000-A1-IP65-ND
• Power Consumption: 70 W
• Input Voltage: 100-305 V AC
• Input Frequency: 50/60 Hz
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell ELG-100
• Total Lumens Output: 12400 lm
• Colour Temperature: 3000 K (warm white)
• Color Rendering Index (CRI): >70
• Beam Angle: 72°×72° (symmetric)
• Beam Angle Range: 100+
• IK Impact Rating: IK08
• IP Rating: IP65
• Dimming Capability: Non-dimmable
• Power Factor: >0.95
• Surge Protection: 10 kV
• Input Cable Type: H07RN-F 3G1.0
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Fixture Height: 159.5 mm
• Fixture Length: 280 mm
• Fixture Width: 280 mm
• Number of Lamps: 1
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan: 50,000 hours
• Product Dimensions (packaging): 280 x 280 x 159.5 mm
• Net Weight: 2.6 kg
• Export Carton Dimensions: 360 x 360 x 205 mm
• Products per Carton: 1
• Export Carton Gross Weight: 4.2 kg
