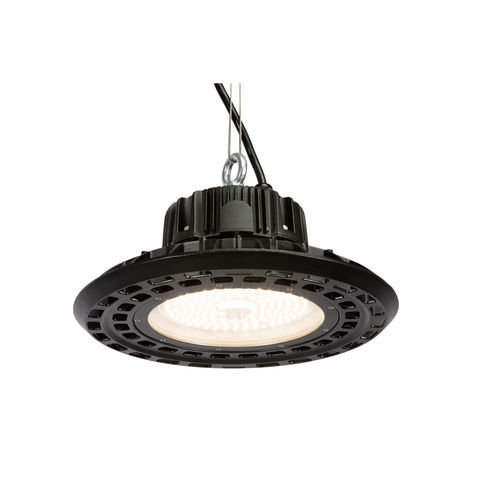

Flat ceiling light JNFB11-250S-5700-A1-IP65-NDaluminumLEDwaterproof
Add to favorites
Compare this product
Characteristics
- Shape
- flat
- Material
- aluminum
- Light source
- LED
- Other characteristics
- waterproof, not dimmable, high bay
- Market
- industrial
- Color
- black
- Protection class
- IP65
- Number of lights
- single
- Power
Min.: 250 W
(0.34 hp)Max.: 250 W
(0.34 hp)- Luminous flux
Min.: 40,100 lm
Max.: 40,100 lm
- Color temperature
Min.: 5,700 K
Max.: 5,700 K
- Color rendering index (CRI)
Min.: 70 unit
Max.: 100 unit
- Height
Min.: 167 mm
(7 in)Max.: 167 mm
(7 in)- Length
Min.: 400 mm
(16 in)Max.: 400 mm
(16 in)
Description
Short description
250 W LED flat high bay lamp fitted with Philips Lumileds and a Meanwell HLG-320H driver. IP65-rated for dust and water protection. Non-dimmable. Designed to replace 400 W metal halide/HID/HPS fixtures. Symmetric integrated 72°×72° reflector for controlled light distribution.
Key features
Product specifications
250 W LED flat high bay lamp fitted with Philips Lumileds and a Meanwell HLG-320H driver. IP65-rated for dust and water protection. Non-dimmable. Designed to replace 400 W metal halide/HID/HPS fixtures. Symmetric integrated 72°×72° reflector for controlled light distribution.
Key features
- Original Philips Lumileds LEDs
- Meanwell HLG-320H LED driver
- Integrated 72°×72° symmetric reflector
- IP65 protection against dust and water
- IK08 impact rating
- Total luminous flux: 40,100 lm
- Surge protection: 10 kV
- Die-cast aluminum housing, black finish
- Non-dimmable
Product specifications
- Product SKU: JNFB11-250S-5700-A1-IP65-ND
- Rated Power: 250 W
- Input Voltage: 100–305 V AC
- LED Type: Philips Lumileds
- LED Driver: Meanwell HLG-320H
- Total Lumen Output: 40,100 lm
- Correlated Colour Temperature (CCT): 5700 K (cool white)
- Colour Rendering Index (CRI): >70
- Beam Angle: 72°×72° (symmetric, integrated reflector)
- IP Rating: IP65
- IK Rating: IK08
- Power Factor: >0.95
- Surge Protection: 10 kV
- Input Frequency: 50/60 Hz
- Housing Material: Die-cast aluminum, black
- Dimensions (mm): 400 × 400 × 167
- Net Weight: 4.6 kg
- Operating Temperature: -20°C to 45°C
- Operating Humidity: 10%–90% RH
- Lifespan: 50,000 hours
- Input Cable: H07RN-F 3G1.5
- Number of Lamps: 1
