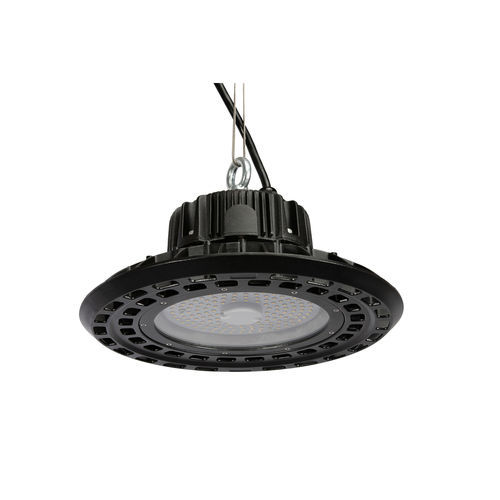

Flat ceiling light JNFB12-300S-4000-A1-IP65-DIM

aluminumLEDdimmable

Description
300 Watt LED flat high bay lamp equipped with Philips Lumileds LEDs and a Meanwell HLG-320H driver. IP65 rated for dust and water protection. Dimmable. Designed to replace 400 Watt metal halide/HID/HPS luminaires and deliver 48,000 lm at 4000 K (natural white). Suitable for industrial and commercial high-ceiling environments where symmetrical medium beam distribution is required.

Features

• Integrated 72°x72° symmetric reflector
• Original Philips Lumileds LEDs
• Meanwell HLG-320H LED driver
• IP65 protection (dust and water)
• Dimmable control
• 10 kV surge protection
• Die-cast aluminium housing, black

Product Specifications
Product SKU: JNFB12-300S-4000-A1-IP65-DIM
Power Consumption: 300 W
Input Voltage: 100-305 V AC
Beam Angle (°): 72°x72°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 48000 lm
Color Temperature (K): 4000 (natural white)
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
LED Driver Brand: Meanwell HLG-320H
Surge Protection: 10 kV
Input Voltage Range: 100~305 V AC
Input Cable Type: H07RN-F 3G1.5
Fixture Height (mm): 167 mm
Fixture Length (mm): 400 mm
Fixture Width (mm): 400 mm
Number of Lamps: 1 lamp(s)
Beam Angle Range: 100+
Beam Angle Format: Symmetric
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 400x400x167 mm
Net Weight (kg): 4.6 kg
Export Carton Dimensions (mm): 360x360x205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 6.8 kg

Technical specifications

• Model / SKU: JNFB12-300S-4000-A1-IP65-DIM
• Rated Power: 300 W
• Input Voltage: 100-305 V AC
• LED Type: Philips Lumileds
• Driver: Meanwell HLG-320H
• Colour Temperature: 4000 K (natural white)
• Total Luminous Flux: 48,000 lm
• Beam Angle: 72° x 72° (symmetric)
• IP Rating: IP65
• IK Rating: IK08
• Power Factor: >0.95
• Dimming: Yes (dimmable)
• Surge Protection: 10 kV
• Housing Material / Colour: Die-cast Aluminum / Black
• Ingress Cable: H07RN-F 3G1.5
• Fixture Size (HxLxW): 167 x 400 x 400 mm
• Net Weight: 4.6 kg
• Operating Temperature: -20°C to 45°C
• Operating Humidity: 10% - 90% RH
• Lifespan: 50,000 hours
