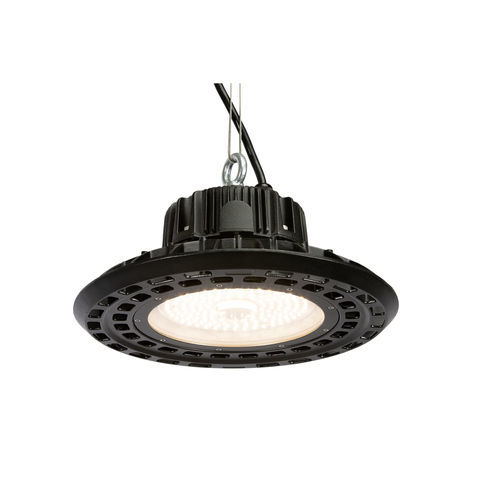

Hanging light fixture JNFB12-300S-5700-A1-IP65-ND

LEDflatIP65

Product short description
300 Watt LED flat high bay lamp with Philips Lumileds LEDs and Meanwell HLG-320H driver, IP65 rated. Non-dimmable. Replaces 400 Watt metal halide/HID/HPS luminaires. Integrated 72×72° symmetric reflector.

Product Specifications
Product SKU : JNFB12-300S-5700-A1-IP65-ND
Power Consumption : 300 W
Input Voltage : 100-305 V AC
Beam Angle (°) : 72°x72°
IP Rating : IP65
Color Rendering Index : >70
LED Type : Philips Lumileds
Total Lumens Output : 48,000 lm
Color Temperature (K) : 5700 K (cool white)
IK Impact Rating : IK08
Dimming Capability : Non-dimmable
Housing Colour : Black
Power Factor : >0.95
Input Frequency : 50/60 Hz
Housing Material : Die-cast Aluminum
LED Driver Brand : Meanwell HLG-320H
Surge Protection : 10 kV
Input Voltage Range : 100~305 V AC
Input Cable Type : H07RN-F 3G1.5
Fixture Height (mm) : 167 mm
Fixture Length (mm) : 400 mm
Fixture Width (mm) : 400 mm
Number of Lamps : 1
Beam Angle Range : 100+
Operating Temperature Range : -20°C ~ 45°C
Operating Humidity Range : 10%-90% RH
Lifespan (Hours) : 50,000 hours

Packaging & Shipping
Product Dimensions (mm) : 400×400×167 mm
Net Weight (kg) : 4.6 kg
Export Carton Dimensions (mm) : 360×360×205 mm
Products per Carton : 1
Export Carton Gross Weight (kg) : 6.8 kg

Technical specifications

• Power Consumption: 300 W
• Input Voltage: 100-305 V AC
• Beam Angle: 72°x72° (Symmetric)
• IP Rating: IP65
• CRI: >70
• LED Type: Philips Lumileds
• Total Lumens: 48,000 lm
• Colour Temperature: 5700 K (cool white)
• IK Impact Rating: IK08
• Dimming: Non-dimmable
• Housing Colour: Black
• Power Factor: >0.95
• Input Frequency: 50/60 Hz
• Housing Material: Die-cast Aluminum
• LED Driver: Meanwell HLG-320H
• Surge Protection: 10 kV
• Input Cable Type: H07RN-F 3G1.5
• Fixture Dimensions (L×W×H): 400×400×167 mm
• Net Weight: 4.6 kg
• Operating Temperature: -20°C to 45°C
• Operating Humidity: 10%–90% RH
• Lifespan: 50,000 hours
