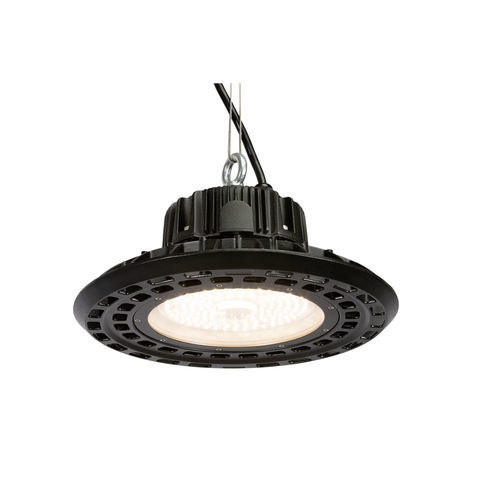

Hanging light fixture JNFB8-120S-5700-A1-IP65-DIM

LEDflatIP65

A 120 W cool white LED flat high-bay luminaire designed for industrial and commercial high-bay applications. The unit is IP65-rated, dimmable and incorporates an integrated 72×72° symmetric reflector with high-efficiency Philips Lumileds LEDs and a Meanwell ELG-150 driver, delivering 21,800 lm at 5700 K.

Technical specifications

• Product SKU: JNFB8-120S-5700-A1-IP65-DIM
• Power consumption: 120 W
• Input voltage: 100–305 V
• Beam angle: 72°×72° (symmetric)
• IP rating: IP65
• Colour rendering index (CRI): >70
• LED type: Philips Lumileds
• Total luminous flux: 21,800 lm
• Colour temperature: 5700 K (cool white)
• IK impact rating: IK08
• Dimming capability: Dimmable
• Housing colour: Black
• Power factor: >0.95
• Input frequency: 50/60 Hz
• Housing material: Die-cast aluminium
• LED driver: Meanwell ELG-150
• Surge protection: 10 kV
• Input cable type: H07RN-F 3G1.0
• Fixture dimensions (mm): 340 × 340 × 166
• Net weight: 3.6 kg
• Working temperature range: -20°C ~ 45°C
• Working humidity range: 10%–90% RH
• Lifespan (hours): 50,000 h
• Export carton dimensions (mm): 360 × 360 × 205
• Products per carton: 1
• Export carton gross weight: 4.2 kg

Applications

• Warehouses and distribution centres
• Production halls and assembly lines
• Logistics and industrial facilities
• Sports halls and large commercial spaces

Installation and dimensions

• Designed for suspension or hook mounting
• Cable entry: H07RN-F 3G1.0
• Fixture size: 340 × 340 × 166 mm — Net weight 3.6 kg
• Refer to product SKU for ordering and configuration: JNFB8-120S-5700-A1-IP65-DIM
