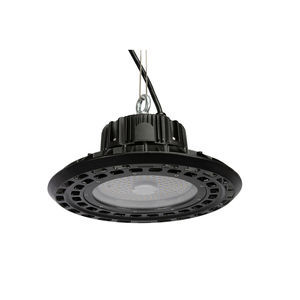

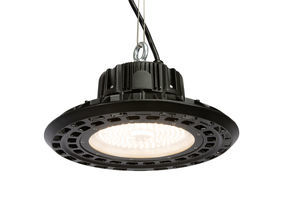

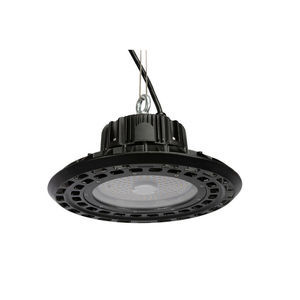

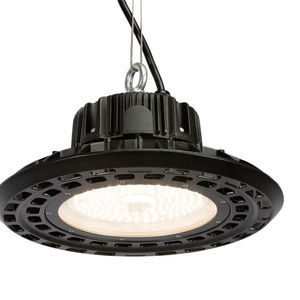

Hanging light fixture JNFB6-070S-3000-A1-IP65-DIMLEDflatIP65
Add to favorites
Compare this product
Characteristics
- Type
- hanging
- Light source
- LED
- Shape
- flat
- Protection class
- IP65
- Application
- commercial, industrial
- Material
- aluminum
- Color
- black
- Dimmable
- dimmable
- Number of lights
- single
- Other characteristics
- IK08, with reflector, high bay
- Height
Max.: 160 mm
(6 in)Min.: 160 mm
(6 in)- Length
Max.: 280 mm
(11 in)Min.: 280 mm
(11 in)- Width
Max.: 280 mm
(11 in)Min.: 280 mm
(11 in)- Power
Max.: 70 W
(0.1 hp)Min.: 70 W
(0.1 hp)- Luminous flux
Max.: 12,400 lm
Min.: 12,400 lm
- Color temperature
Max.: 3,000 K
Min.: 3,000 K
- Color rendering index (CRI)
Max.: 100 unit
Min.: 70 unit
Description
Description
70 Watt LED flat high bay lamp with Philips Lumileds LEDs and Meanwell ELG-100 driver. IP65-rated for dust and water protection, dimmable and designed to replace 200 W metal halide/HID/HPS luminaires. Integrated symmetric 72°x72° reflector for controlled distribution. Compact die-cast aluminum housing in black, suitable for industrial and commercial high-bay applications.
Features
Product Specifications
Packaging & Shipping
Technical specifications
70 Watt LED flat high bay lamp with Philips Lumileds LEDs and Meanwell ELG-100 driver. IP65-rated for dust and water protection, dimmable and designed to replace 200 W metal halide/HID/HPS luminaires. Integrated symmetric 72°x72° reflector for controlled distribution. Compact die-cast aluminum housing in black, suitable for industrial and commercial high-bay applications.
Features
- Original Philips Lumileds LEDs
- Meanwell ELG-100 LED driver
- IP65 protection against dust and water
- Dimmable
- Integrated symmetric 72°x72° reflector
- Retrofit replacement for 200 W metal halide/HID/HPS
- Surge protection 10 kV
Product Specifications
- Product SKU: JNFB6-070S-3000-A1-IP65-DIM
- Power Consumption: 70 W
- Input Voltage: 100–305 V AC
- Beam Angle: 72° × 72° (symmetric)
- IP Rating: IP65
- IK Rating: IK08
- Color Temperature: 3000 K (warm white)
- Color Rendering Index (CRI): >70
- Total Luminous Flux: 12,400 lm
- LED Type: Philips Lumileds
- LED Driver: Meanwell ELG-100
- Power Factor: >0.95
- Surge Protection: 10 kV
- Working Temperature: -20 °C to 45 °C
- Working Humidity: 10%–90% RH
- Lifespan: 50,000 hours
- Housing Material: Die-cast aluminum, black
- Input Cable: H07RN-F 3G1.0
- Fixture Dimensions (mm): 280 × 280 × 159.5
- Net Weight: 2.6 kg
Packaging & Shipping
- Product Dimensions (mm): 280 × 280 × 159.5
- Net Weight (kg): 2.6
- Export Carton Dimensions (mm): 360 × 360 × 205
- Products per Carton: 1
- Export Carton Gross Weight (kg): 4.2
Technical specifications
- Model / SKU: JNFB6-070S-3000-A1-IP65-DIM
- Power: 70 W
- Lumen output: 12,400 lm
- LED: Philips Lumileds
- Driver: Meanwell ELG-100
- Color temperature: 3000 K (warm white)
- Beam angle: 72° × 72° (symmetric)
- IP rating: IP65
- IK rating: IK08
- Dimmable: Yes
- Housing: Die-cast aluminum, black
- Power factor: >0.95
- Input voltage: 100–305 V AC
- Surge protection: 10 kV
- Working temperature: -20 °C to 45 °C
- Lifespan: 50,000 hours
- Dimensions (mm): 280 × 280 × 159.5
- Net weight: 2.6 kg
