Hanging light fixture JNFB11-250S-6500-A1-IP65-DIMLEDflatIP65
Add to favorites
Compare this product
Characteristics
- Type
- hanging
- Light source
- LED
- Shape
- flat
- Protection class
- IP65
- Application
- industrial, commercial
- Material
- cast aluminum
- Color
- black
- Dimmable
- not dimmable
- Number of lights
- single
- Other characteristics
- high bay, IK08, with reflector
- Height
Max.: 167 mm
(7 in)Min.: 167 mm
(7 in)- Length
Max.: 400 mm
(16 in)Min.: 400 mm
(16 in)- Width
Max.: 400 mm
(16 in)Min.: 400 mm
(16 in)- Power
Max.: 250 W
(0.34 hp)Min.: 250 W
(0.34 hp)- Luminous flux
Max.: 40,100 lm
Min.: 40,100 lm
- Color temperature
Max.: 6,500 K
Min.: 6,500 K
- Color rendering index (CRI)
Max.: 100 unit
Min.: 70 unit
Description
Short description

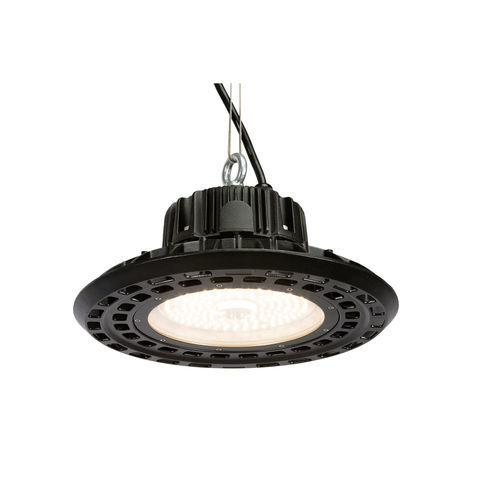

LED high bay flat bay luminaire JNFB11-250S-6500-A1-IP65 with Philips Lumileds LEDs and Meanwell HLG-320H driver. 250 W power, 6500 K cool white, IP65, non-dimmable, integrated 72°×72° reflector. Designed for industrial and commercial high-ceiling applications, replaces 400 W HID/HPS lamps and provides 40,100 lm total luminous output.
Features
Packaging & Shipping
Product Dimensions (mm): 400 × 400 × 167 mm
Net Weight (kg): 4.6 kg
Export Carton Dimensions (mm): 360 × 360 × 205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 6.8 kg
Technical specifications
LED high bay flat bay luminaire JNFB11-250S-6500-A1-IP65 with Philips Lumileds LEDs and Meanwell HLG-320H driver. 250 W power, 6500 K cool white, IP65, non-dimmable, integrated 72°×72° reflector. Designed for industrial and commercial high-ceiling applications, replaces 400 W HID/HPS lamps and provides 40,100 lm total luminous output.
Features
- Original Philips Lumileds LEDs
- Meanwell HLG-320H LED driver
- Power consumption: 250 W
- Input voltage: 100-305 V AC
- Beam angle: 72° × 72° (symmetric)
- IP rating: IP65
- IK impact rating: IK08
- Colour temperature: 6500 K (cool white)
- Colour Rendering Index (CRI): >70
- Total luminous output: 40,100 lm
- Power factor: >0.95
- Input frequency: 50/60 Hz
- Surge protection: 10 kV
- Dimming: Non-dimmable
- Housing material: Die-cast aluminium
- Housing colour: Black
- Input cable type: H07RN-F 3G1.5
- Fixture dimensions (L×W×H): 400 × 400 × 167 mm
- Fixture height: 167 mm
- Fixture length/width: 400 mm
- Number of lamps: 1
- Working temperature range: -20°C ~ 45°C
- Working humidity range: 10% - 90% RH
- Lifespan: 50,000 hours
Packaging & Shipping
Product Dimensions (mm): 400 × 400 × 167 mm
Net Weight (kg): 4.6 kg
Export Carton Dimensions (mm): 360 × 360 × 205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 6.8 kg
Technical specifications
- Product SKU: JNFB11-250S-6500-A1-IP65-ND
- Power consumption: 250 W
- Input voltage / range: 100-305 V AC
- Beam angle (°): 72° × 72° (symmetric)
- IP rating: IP65
- CRI: >70
- LED type: Philips Lumileds
- Total lumens output: 40,100 lm
- Colour temperature (K): 6500
- IK rating: IK08
- Dimming: Non-dimmable
- Housing colour: Black
- Power factor: >0.95
- Input frequency: 50/60 Hz
- Housing material: Die-cast Aluminium
- LED driver brand: Meanwell HLG-320H
- Surge protection: 10 kV
- Input cable type: H07RN-F 3G1.5
- Fixture height: 167 mm
- Fixture length: 400 mm
- Fixture width: 400 mm
- Number of lamps: 1
- Working temperature range: -20°C ~ 45°C
- Working humidity range: 10% - 90% RH
- Lifespan (hours): 50,000 hours
