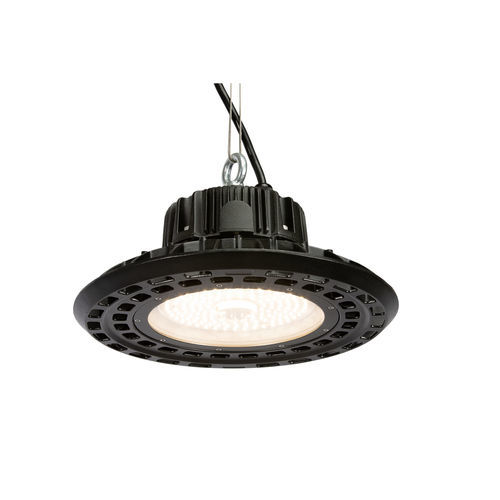

Hanging light fixture JNFB11-250S-5000-A1-IP65-NDLEDflatIP65
Add to favorites
Compare this product
Characteristics
- Type
- hanging
- Light source
- LED
- Shape
- flat
- Protection class
- IP65
- Application
- industrial
- Material
- aluminum
- Color
- black
- Dimmable
- not dimmable
- Number of lights
- single
- Other characteristics
- with reflector, IK08, high bay
- Height
Min.: 167 mm
(7 in)Max.: 167 mm
(7 in)- Length
Min.: 400 mm
(16 in)Max.: 400 mm
(16 in)- Width
Min.: 400 mm
(16 in)Max.: 400 mm
(16 in)- Power
Min.: 250 W
(0.34 hp)Max.: 250 W
(0.34 hp)- Luminous flux
Min.: 40,100 lm
Max.: 40,100 lm
- Color temperature
Min.: 5,000 K
Max.: 5,000 K
- Color rendering index (CRI)
Min.: 70 unit
Max.: 100 unit
Description
Short description
200 Watt LED flat high bay lamp, with original Philips LumiLEDs and Meanwell driver(s), IP65. Non-dimmable. Replaces 400 Watt metal halide/HID/HPS. With integrated reflector.
Product Specifications
Product SKU: JNFB11-250S-5000-A1-IP65-ND
Power Consumption: 250 W
Input Voltage: 100-305V
Beam Angle (°): 72°x72°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 40100 lm
Color Temperature (K): 5000 K
IK Impact Rating: IK08
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
LED Driver Brand: Meanwell HLG-320H
Surge Protection: 10kV
Input Voltage Range: 100~305V AC
Input Cable Type: H07RN-F 3G1.5
Fixture Height (mm): 167 mm
Fixture Length (mm): 400 mm
Fixture Width (mm): 400 mm
Number of Lamps: 1 lamp(s)
Beam Angle Range: 100+
Beam Angle Format: Symmetric
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours
Packaging & Shipping
Product Dimensions (mm): 400x400x167 mm
Net Weight (kg): 4.6 kg
Export Carton Dimensions (mm): 360x360x205
Products per Carton: 1
Export Carton Gross Weight (kg): 6.8 kg
Additional information
Power (W): 250
Voltage: 100-305V
Beam Angle (°): 72°x72°
IP Rating: IP65
CRI: >70
LED‐Type: Philips Lumileds
Lumens (lm): 40100
Colour Temperature (K): 5000
IK Rating: IK08
Dimming: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Caractéristiques / spécifications techniques
200 Watt LED flat high bay lamp, with original Philips LumiLEDs and Meanwell driver(s), IP65. Non-dimmable. Replaces 400 Watt metal halide/HID/HPS. With integrated reflector.
Product Specifications
Product SKU: JNFB11-250S-5000-A1-IP65-ND
Power Consumption: 250 W
Input Voltage: 100-305V
Beam Angle (°): 72°x72°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 40100 lm
Color Temperature (K): 5000 K
IK Impact Rating: IK08
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
LED Driver Brand: Meanwell HLG-320H
Surge Protection: 10kV
Input Voltage Range: 100~305V AC
Input Cable Type: H07RN-F 3G1.5
Fixture Height (mm): 167 mm
Fixture Length (mm): 400 mm
Fixture Width (mm): 400 mm
Number of Lamps: 1 lamp(s)
Beam Angle Range: 100+
Beam Angle Format: Symmetric
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours
Packaging & Shipping
Product Dimensions (mm): 400x400x167 mm
Net Weight (kg): 4.6 kg
Export Carton Dimensions (mm): 360x360x205
Products per Carton: 1
Export Carton Gross Weight (kg): 6.8 kg
Additional information
Power (W): 250
Voltage: 100-305V
Beam Angle (°): 72°x72°
IP Rating: IP65
CRI: >70
LED‐Type: Philips Lumileds
Lumens (lm): 40100
Colour Temperature (K): 5000
IK Rating: IK08
Dimming: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Caractéristiques / spécifications techniques
- Power: 250 W
- Total luminous flux: 40100 lm
- Color temperature: 5000 K
- LED: Philips Lumileds
- Driver: Meanwell HLG-320H
- Input voltage: 100-305V AC
- IP rating: IP65
- IK rating: IK08
- Power factor: >0.95
- Surge protection: 10kV
- Dimensions (WxLxH): 400 x 400 x 167 mm
- Net weight: 4.6 kg
- Operating temperature: -20°C to 45°C
- Humidity range: 10%-90% RH
- Lifespan: 50,000 hours
- Housing material: Die-cast Aluminum
- Beam angle: 72°x72° (symmetric)
