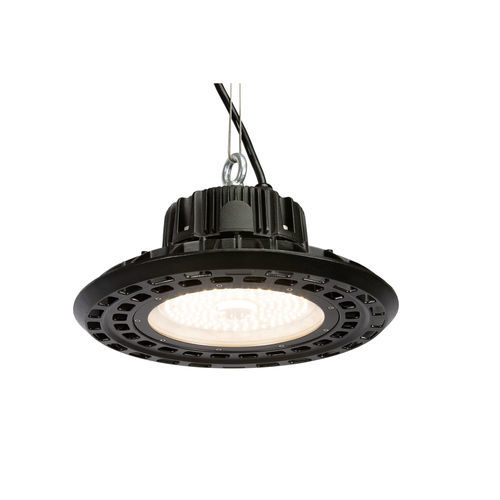

Hanging light fixture JNFB12-300S-3000-A1-IP65-DIM

LEDmetal halideHID

Short description
300 Watt LED flat high bay lamp with Philips Lumileds and Meanwell HLG-320H driver, IP65 rated and dimmable. Replaces 400 W metal halide/HID/HPS luminaires. Symmetric 72°x72° integrated reflector for focused warm white (3000K) lighting, total output approximately 48,000 lm.

Product specifications (table)
Product SKU: JNFB12-300S-3000-A1-IP65-DIM
Power Consumption: 300 W
Input Voltage: 100-305 V AC
Beam Angle (°): 72°x72°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 48000 lm
Color Temperature (K): 3000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
LED Driver Brand: Meanwell HLG-320H
Surge Protection: 10 kV
Input Voltage Range: 100~305 V AC
Input Cable Type: H07RN-F 3G1.5
Fixture Height (mm): 167 mm
Fixture Length (mm): 400 mm
Fixture Width (mm): 400 mm
Number of Lamps: 1 lamp(s)
Beam Angle Range: 100+
Beam Angle Format: Symmetric
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping (table)
Product Dimensions (mm): 400x400x167 mm
Net Weight (kg): 4.6 kg
Export Carton Dimensions (mm): 360x360x205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 6.8 kg

Additional information (table)
Power (W): 300
Voltage: 100-305 V AC
Beam Angle (°): 72°x72°
IP Rating: IP65
CRI: >70
LED-Type: Philips Lumileds
Lumens (lm): 48000
Colour Temperature (K): 3000
IK Rating: IK08
Dimming: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum

Technical specifications

• Power: 300 W
• Input voltage: 100-305 V AC
• Driver: Meanwell HLG-320H
• LEDs: Philips Lumileds
• Lumens: 48,000 lm
• Colour temperature: 3000 K (warm white)
• CRI: >70
• Beam angle: 72°x72°, symmetric
• IP rating: IP65
• IK rating: IK08
• Dimmable: Yes
• Power factor: >0.95
• Surge protection: 10 kV
• Input frequency: 50/60 Hz
• Housing: Die-cast aluminium, black
• Dimensions (mm): 400 x 400 x 167
• Net weight: 4.6 kg
• Operating temperature: -20°C to 45°C
• Operating humidity: 10% - 90% RH
• Lifespan: 50,000 hours
• Input cable: H07RN-F 3G1.5
