Stainless steel 316L kettle VIKING 4G 80E

Overview

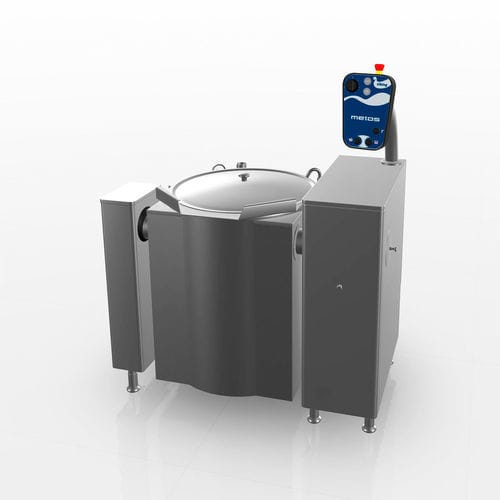

Metos Viking 4G 80E tilting cooking kettle, fully manufactured in Finland. Electric, steam-jacketed kettle with net capacity 80 L and gross volume 91 L. Device supplied without mixer. Temperature can be set to user requirements. Tilting height from pouring spout to floor: 600 mm. Ergonomic design ensures easy operation, cleaning and hygienic maintenance. Energy-efficient construction makes the kettle suitable for professional kitchens. Unit can be floor-fixed or freestanding and meets applicable national and EU safety standards. User controls are fully raised and IPX5 protected. All parts exposed to food or dirt are removable without special tools and are dishwasher-safe. A range of optional accessories is available for the Metos Viking 4G kettle.

Volumes
Gross Volume: 91 L
Net Volume: 80 L

Delivery includes

• Viking 4G kettle complete with electric tilting (600 mm height)
• Stainless steel lid
• Food water filling
• Ergonomic and fully raised control panel
• Emergency off controls
• Accessory hooks
• Separate measuring stick
• Support pillar
• Stainless steel (EN 1.4404)

Construction
The kettle is double-jacketed and electrically powered and uses its own steam generator. Standard bowl panels are fully insulated with reflective foam pad to ensure up to 90% energy efficiency. OPTION: polyurethane foam insulation and seamless welded bowl construction. OPTION: surface, subsurface or free-standing installation.

Control panel
Large, ergonomic control panel is fully raised above splash zone. Electromechanical controls include temperature, tilting and jacket water level indicators plus an emergency stop button with simple "turn and select" logic. Temperature setting range in steam jacket: 0°C…120°C. Max operating pressure (jacket): 1,0 bar (corresponds to +120°C); design pressure: 1,5 bar.

Tilting functions
Powerful electric tilting activated by a button. Tilting height from pouring spout to floor is 600 mm, compatible with the MPT 450 decanting trolley.

Handshower options

• S1 Standard
• S2 Heavy Duty
• S3 Reel-in hand shower

Occupational safety
Tilting operation is activated only by a dedicated button. A clearly visible emergency stop button is fitted for immediate shutdown in case of emergency.

Optional features

• Automatic food water filling (button-activated; waterspout positioned for filling through safety grid lid)
• Automatic jacket water filling
• Extra power socket (230 V 16 A) on rear of control panel
• Digital temperature display (food product temperature on control panel; typically used with mixing kettles)
• Cooling (available only with Viking Combi models with mixer)
• Strainer plate (for stocks, sauces, rice, potatoes etc.)
• Drain valve – D1 (tangent valve) option
• Hinged lid option
• Safety grid lid option

Technical specifications

• SKU: 4224104
• Weight: 185,0 kg
• Dimensions: 1154 × 720 × 900/1535 mm
• Capacity: 80 L
• Gross Volume: 91 L
• Power / Electrical: 400/230 V, 20 A, 12 kW, 3NPE, 50/60 Hz
• Cold Water (CW): R½" (Ø15)
• Hot Water (HW): R½" (Ø15)
• Tilting height to floor: 600 mm
• Max operating pressure (jacket): 1,0 bar (corresponds to +120°C); Design pressure: 1,5 bar
• Materials: Stainless steel (EN 1.4404)
