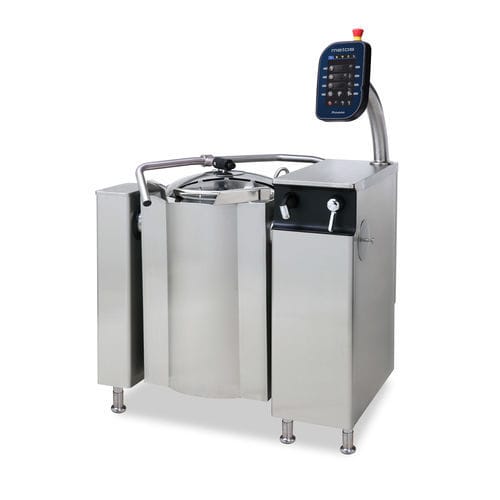

Polyurethane kettle PROVENO 80E

316 stainless steel

Overview
The Proveno mixing combi kettle, proudly made in Finland, offers intelligent automation and practical features to simplify routine food production without continuous supervision. User-oriented design enables easy programming and recipe management, broad configuration options and robust stainless-steel construction. Optimised ergonomics facilitate operation, cleaning and hygiene. Energy-efficient concept. Available floor-mounted or as a free-standing unit to reduce installation time. Complies with international and EU safety standards.

Key capabilities

• Gross volume 91 L, net capacity 80 L
• Electric tilting combi kettle with integrated mixer
• Variable-speed mixing in both directions (10–160 rpm)
• 9 pre-programmed mixing programs plus unlimited custom programs/recipe bank
• 9" high-visibility colour touchscreen control panel
• Can be combined with other Proveno and Metos kettles without intermediate support pillar

Standard features

• Proveno kettle with integrated mixer
• Stepless mixing speed 10–160 rpm with auto-reverse
• Elevated control pillar with 9" glove-friendly touchscreen
• Audio-visual signals for operator
• Multi-function timer and on-screen programming with unlimited programs, program phases and recipe bank
• Pre-set programs for common production recipes and wash cycles
• Mixing patterns and saving of custom patterns
• ProTemp real-time temperature control (food and jacket temperatures separately controlled)
• Intelligent heating settings from gentle warming to full power (supports low-temperature cooking, sous-vide, proving and tempering)
• Delta-T cooking mode (jacket temperature rises according to food temperature)
• Fully insulated kettle bowl
• User privilege levels
• 1/3 safety-grid lid
• Automatic measured water filling
• Electric or hydraulic tilting depending on size
• Tilting while mixing and auto tilt-back
• Graphical HACCP data display, searchable by date
• Daily monitoring and trackable electricity and water usage
• On-screen calculator
• USB port on control panel for program updates, transfers and HACCP data saving
• Teacher mode for programming demonstrations and training
• Machine error diagnostics for maintenance and service
• On-screen energy and water consumption measurement
• Steam-jacket automatic water filling
• Removable parts dishwasher safe; removable mixing tool with detachable scrapers; quick-release stainless-steel lid

Control panel
Large elevated control panel with guided touchscreen interface; emergency stop button; only available functions active; info and error popups; status visible from a distance; contextual user manual readable on screen; IP68 protected USB connector at rear for software updates, program upload/download and HACCP export; optional integrated electrical socket (230 V 10 A); user privilege levels and built-in electric noise reduction.

Timer functions
Multiple timers can be set; selected functions are timable; cook & hold, egg timer, timed heating and mixing; timed mixing patterns; timed first water drain; timed water addition.

Programming
Programming is standard: tested recipes for typical foods and cleaning programs; program, modify and save recipes on the kettle touchscreen; unlimited programs and program phases; favourite pages for most-used programs.

HACCP
HACCP set points and alarms; graphical HACCP display records heating, mixing and cooling cycles; data searchable by date; pre-set program start by time/date.

Cleaning programmes
Pre-set cleaning program and the option to save unlimited custom wash programs.

Heating function
ProTemp real-time temperature control allows setting food temperature, jacket temperature or their difference (Delta-T). Real-time displays for both food and jacket. Temperature range up to 120°C with 1°C precision. Maximum jacket pressure 1.0 bar (corresponds to +120°C in jacket). Smart power settings for delicate cooking or full-power heating.

Automatic water filling
Standard feature controlled via touchscreen: set a specific volume in litres or open/close the water valve manually. Water spout positioned for filling even at low pressure; operable while tilting the kettle.

Mixer features
Two-directional bottom-mounted mixing tool with auto-reverse; stepless speed 10–160 rpm; separate power mixing button for raw ingredients or spices; mixing while tilting possible with hold button; nine pre-programmed mixing patterns and ability to create/save custom patterns; safety: mixer stops within one second if lid is opened.

Tilting functions
Durable electric or hydraulic tilting system (size-dependent) activated by push button; tilting only while button pressed; Auto Tilt-back prevents overfilling; ergonomic pouring spout height 600 mm from floor; slow mixing while tilting standard; optional hands-free foot pedal for tilting while mixing.

Cooling (optional)
When configured with cooling, Proveno can circulate chilled water through its jacket using a separate chiller or ice bank to reduce product temperature rapidly (example: from 95°C to 3°C in approx. 1 hour depending on viscosity and kettle size). Multiple circulation methods (closed/open/combined) available as configuration options.

Maintenance and diagnostics
The kettle logs usage and operating hours (including power outages) to assist maintenance and troubleshooting; machine error diagnostics available for service teams.

Occupational safety
Software prevents accidental button presses and sudden mixer speed changes; mixer stops within one second if lid is opened; automatic steam evaporation (optional) before cooling; alerts and timers on display for electrical or water outages; kettle will not heat if water supply is disrupted; mixing with lid open blocked in upright position; reminders for semi-automatic safety valve tests.

Material
Constructed from stainless steel with inner surface of acid-resistant 316 stainless steel. Standard outer panels are fully insulated and remain only warm to the touch. Optional polyurethane foam insulation for bowl panels available to enhance rigidity and energy efficiency. Protection rating IPX5.

Technical specifications

• SKU: 4224604
• Model: Proveno 80E
• Gross volume: 91 L
• Net volume / Capacity: 80 L
• Weight: 230.0 kg
• Dimensions: 1154 × 720 × 900/1535 mm
• Electrical / Technical: 400/230 V, 40 A, 22 kW, 3NPE, 50/60 Hz
• Cold water (CW) connection: R½" (Ø15)
• Hot water (HW) connection: R½" (Ø15)
• Mixing speed: 10–160 rpm (stepless)
• Pre-programmed mixing programs: 9
• Control panel: 9" high-definition colour touchscreen (glove-friendly)
• Maximum jacket temperature / pressure: up to 120°C / 1.0 bar
• Tilting pour spout height: 600 mm from floor
• Protection rating: IPX5
• Inner material: Acid-resistant 316 stainless steel
• Optional features: strainer plates, whipping grids, hand shower options, automated cooling, decanting, pumping valves, Diagomix lid, GN-pouring support, light, high-speed blender top (40–100 L), LAN (RJ45) option, integrated electrical socket outlet option
