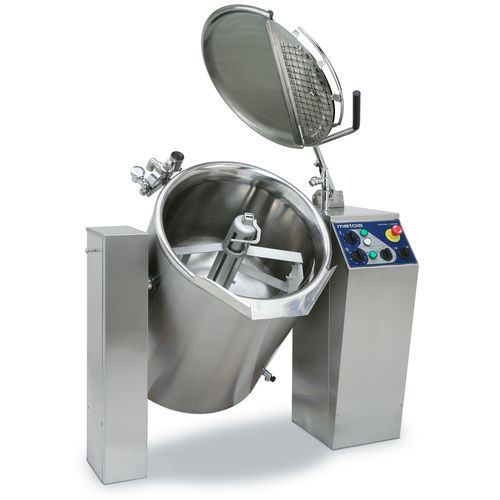

Stainless steel 316L kettle VIKING COMBI 80E SGL

Product overview
The Metos Viking Combi mixing kettle is fully manufactured in Finland. Automated controls allow selection of mixing programs and temperature, reducing the need for constant supervision. The pouring spout height to floor is 400 mm. Ergonomic design facilitates operation, cleaning and hygienic handling. Energy-efficient steam-jacket heating makes the unit economical for professional kitchens. The kettle is fixed to the floor and complies with applicable national and EU safety standards.

Main features

• Electric tilting (button-operated)
• Large, ergonomically raised control panel (IPX4)
• Variable two-directional mixing, step range 15–120 rpm (one reference lists 15–110 rpm)
• 2 pre-programmed mixing programs: 1 — soups (gentle stir/rest); 2 — sautéing/mashed potatoes (powerful back-and-forth)
• Compatible with other Viking and Metos kettles without an intermediate support pillar

Design, hygiene and cleaning
All parts subject to soiling are removable without special tools and are dishwasher-safe. The removable mixing tool has large contact area and detachable Teflon scrapers for easy cleaning. The stainless-steel lid includes a lift-off safety grid for adding liquids and ingredients. Mixer axle seals are positioned above the food level to prevent leakage into the motor.

Control panel
Ergonomically raised electromechanical control panel with temperature and mixer controls and an emergency stop. Simple turn-and-select logic; display angled upward for operator convenience. Panel protection rating IPX4.

Heating function
Steam-jacket temperature range 0°C…120°C. Heating selection by dial positions 1–6. Maximum operating pressure 1.0 bar (corresponding to +120°C in the inner jacket). Design pressure 1.5 bar.

Mixer features
Bottom-mounted two-directional mixing tool with automatic reversing for thorough mixing without product damage at low speeds. Mixer locks when the kettle is tilted to allow mixing while decanting. Mixer stops in under one second if the lid is opened and triggers an alarm if opened during a program.

Tilting functions
Electric tilting with pouring spout to floor height 400 mm (compatible with MPT 450 decanting trolley).

Safety and occupational features
Mixing is prevented with the lid open in upright position; safety interlocks and emergency-off controls are provided. If the lid opens during mixing the mixer stops rapidly and an alarm with timer information is activated.

Options

• Automatic food-water filling (button-operated; water outlet positioned for direct filling through safety grid lid)
• Handshower options: S1 standard, S2 heavy-duty

Delivery includes

• Viking Combi kettle with 2 mixing programs
• Electric tilting
• Ergonomically raised control panel
• Emergency off controls and accessory hooks
• Mixing tool
• Lift-off safety grid lid
• Separate measuring stick
• Support pillar
• Food-water mixer tap

Specifications

• SKU: 4215941
• Gross volume: 91 L
• Net / capacity: 80 L
• Weight: 148.0 kg
• Dimensions (W × D × H): 1154 × 805 × 1020 mm
• Material: Stainless steel (EN 1.4404)
• Insulation: Reflective foam insulation for up to 90% energy efficiency
• Electrical: 400 V, 32 A, 14 kW, 3NPE, 50 Hz
• CW: 15, HW: 10
• Mixing speed / adjustment: Step range 15–120 rpm (one reference lists 15–110 rpm)
• Pre-programmed mixing programs: 2 (soups; sautéing/mashed potatoes)
• Temperature range (steam jacket): 0°C…120°C; max operating pressure 1.0 bar; design pressure 1.5 bar
• Tilting height to floor (pouring spout): 400 mm
