316 stainless steel kettle VIKING 4G 150E

not specified

Overview

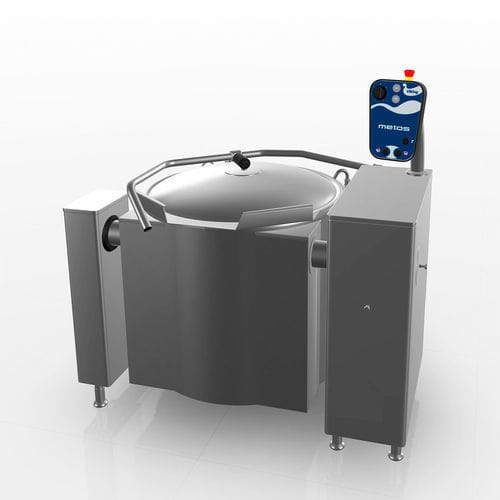

The Metos Viking kettle (Viking Basic 4G 150E, MG4224108) is an electric tilting cooking kettle manufactured in Finland for professional kitchens. Designed for hygienic operation and easy maintenance, the unit is double-jacketed and offers options for fixed or free-standing installation.

Main features

• Electric tilting cooking kettle with electromechanical control panel raised above the water spray and protected to IPX5.
• Electric tilting with a pouring spout height of 600 mm to the floor (compatible with decanting trolley MPT 450).
• All wetted parts removable without special tools and dishwasher safe.
• High energy efficiency with fitted insulated bowl panels; options for polyurethane insulation or seamless welded bowl available.

Delivery includes

• Metos Viking 4G kettle with electric tilting (600 mm), stainless steel lid and accessory hooks.
• Ergonomic fully raised control panel, emergency stop, separate measuring stick and support pillar.
• Food water filling connection fitted as standard.

Construction
Double-jacketed bowl with its own steam generator. Standard fitted bowl panels are insulated with a reflective foam pad providing up to 90% energy efficiency. Options: polyurethane foam insulation and seamless welded bowl. Installation methods: surface, subsurface or free-standing (option).

Control panel
Large ergonomic raised electromechanical control panel with controls for temperature, tilting and jacket water level indicator plus an emergency stop. Operation logic: simple "turn and select".

Heating function
Steam-jacket temperature range 0°C…120°C. Maximum operating pressure 1.0 bar (inner jacket up to +120°C). Design pressure of kettles: 1.5 bar.

Tilting functions
Powerful electric tilting activated by push button for safe and repeatable pouring. Tilting spout height to floor: 600 mm.

Handshower options

• S1 Standard
• S2 Heavy Duty
• S3 Reel-in hand shower

Occupational safety
The tilt is activated only by a dedicated control and the unit includes a clearly visible emergency stop to meet workplace safety requirements.

Optional functions and accessories

• Automatic food water filling (button operation, fill via safety grid lid).
• Automatic jacket water filling.
• Extra power socket: 230V 16A at rear of control panel (option).
• Digital temperature display for product temperature (option).
• Cooling (available with Viking Combi models with mixer).
• Strainer plate for stocks, sauces, rice, potatoes (option).
• Drain valve options: D1 tangent valve, D2 connection for pumping.
• Safety grid lid (option).

Notes
Unit can be securely floor-mounted or free-standing and complies with applicable national and EU safety standards. User controls are positioned to avoid direct water spray. A wide range of optional features and accessories is available for the Metos Viking 4G kettle.

Technical specifications

• Model: Metos Viking 4G 150E
• Gross volume: 169 L
• Net volume / Capacity: 150 L
• Weight: 230.0 kg
• Dimensions: 1360 × 920 × 900/1535 mm
• Material: Stainless steel EN 1.4404
• Construction: Double-jacketed bowl with steam generator; fitted bowl panels insulated with reflective foam pad (up to 90% energy efficiency)
• Electrical: 400/230 V, 32 A, 20 kW, 3NPE, 50/60 Hz
• Plumbing (connections): CW: R½" (Ø15); HW: R½" (Ø15)
• Tilting height (pouring spout to floor): 600 mm
• Protection: Control panel IPX5
• Options: polyurethane foam insulation, seamless welded bowl, automatic food water filling, automatic jacket filling, extra power socket 230V 16A, digital temperature display, cooling (with Combi models), strainer plate, drain valve options (D1, D2), safety grid lid
