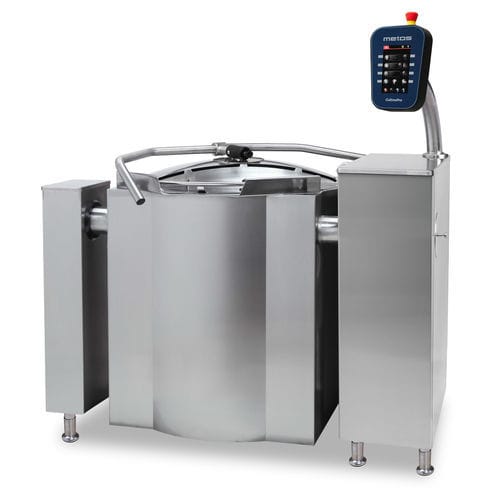

Stainless steel kettle CULINOPRO 150E

316 stainless steelnot specified

Overview
The Metos CulinoPro 150E mixing combi kettle is a professionally manufactured, electric-heated production kettle with integrated mixing and electric tilting. Designed for continuous food production in professional kitchens, it combines automated control of mixing, water fill and temperature with hygienic stainless steel construction and energy monitoring.

Main capacities and general
Net volume: 150 litres. Gross volume: 169 litres. Electric kettle with electric tilting and auto tilt-back. Pouring spout height to floor: 600 mm.

Standard features

• Integrated mixer in kettle bowl
• Stepless mixing speed 15–140 rpm, auto reverse
• Raised control pillar with 7" high-visibility touch screen
• Audio-visual user signals and functional timer
• 9 pre-set mixing programs for production and cleaning
• ProTemp intelligent heating settings; fully insulated bowl panels
• User privilege levels and teacher/demo mode
• Safety-grid lid and automatic measured water filling
• Electric tilting with auto tilt-back
• USB port for software updates and HACCP data export
• On-screen energy and water consumption readouts
• Machine error diagnostics and operational log

Mixer features and mixing programs
The bottom-mounted two-directional mixing tool supports auto-reverse mixing to preserve product integrity at low speeds. The mixer stops immediately if the lid is opened, reducing risk. Mixing shortens heating and cooling times, improving process efficiency.

• Stirring
• Whipping
• Mashing
• Gentle stirring
• Sautéing (meat or vegetables)
• Mashed potatoes
• Desserts
• Porridges
• Dough

Control panel

• Emergency stop button
• Protected against bumps and spray during washing
• Guiding touch screen with only available functions active
• Audio-visual signals and info/error popups
• Remote-visible status display and on-screen user guidance
• Protected USB connector for updates and HACCP export
• Optional integrated 230 V socket (10 A)
• Login-based user privilege levels
• Electric noise reduction system

Timer and functions

• Programmable timed functions
• Cook & hold heat-holding function
• Egg timer function

Heating
Real-time display for product and jacket temperature. Temperature range 0°C–120°C with 1°C resolution. Smart power settings enable gentle or full-power cooking. Max jacket pressure 1.0 bar.

Automatic food water filling
Touch-screen controlled automatic water filling with preset litre buttons or open/close tap control. Can operate while tilting and suitable for low water pressure conditions.

HACCP and data
HACCP data are stored locally and exportable via USB for traceability and reporting.

Energy and water consumption measuring
Energy consumption is measured and displayed; data saved to diagnostics and downloadable via USB. Water consumption is reported separately for food water, bypass water, steam jacket fill and total.

Tilting functions
Electric tilting at the push of a button with adjustable auto tilt-back to prevent overfilling. Ergonomic pouring spout height of 600 mm facilitates emptying into transport containers and cleaning.

Maintenance and diagnostics
Operational logs record use, operating hours and outages. Built-in diagnostics assist maintenance and troubleshooting.

Occupational safety
Software prevents accidental function changes and rapid mixer speed shifts. Mixer stops if lid is opened. The kettle monitors power and water supply events and records program and product status. Semi-automatic safety valve test reminders included.

Teacher status
Dedicated demo/training mode allows safe operator training without activating production functions; includes a teaching app showing the full control panel.

Cooling option
Optional C2 cooling circulates tap water through the jacket to reduce product temperature relative to inlet water.

Technical specifications

• Model: CulinoPro 150E
• SKU: 4224508
• Net volume: 150 litres
• Gross volume: 169 litres
• Weight: 305.0 kg
• Dimensions (W × D × H): 1360 × 920 × 900/1535 mm
• Capacity: 150 litres
• Mixing speed: stepless 15–140 rpm (two directions), auto reverse
• Pre-programmed mixing programs: 9
• Control: 7" digital touch screen; USB for updates and HACCP data
• Heating range: 0°C–120°C, accuracy 1°C; max jacket pressure 1.0 bar
• Tilting: electric tilting, auto tilt-back; pouring spout height 600 mm
• Material: stainless steel; inner surface acid-resistant 316 stainless steel
• Protection class: IPX5
• Electrical: 400/230 V, 63 A, 27.6 kW, 3NPE, 50/60 Hz
• Water connections: CW R½" (Ø15), HW R½" (Ø15)
