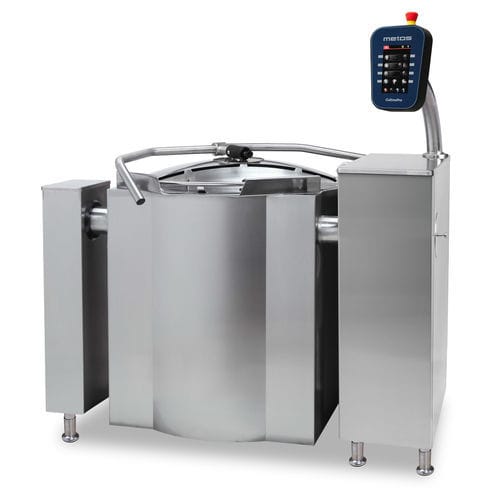

Stainless steel kettle CULINOPRO 300E

Description
CulinoPro 300E MG4224512
The Metos CulinoPro 300E is a 300-litre mixing combi kettle manufactured in Finland for professional kitchens. Automated control handles routine production tasks with minimal supervision. Ergonomic design facilitates operation, cleaning and hygiene. Energy-efficient electric heating and advanced controls make it suitable for high-volume food production. The unit can be floor-attached or ordered free-standing to simplify installation. Meets international and EU safety standards.

Main capabilities
Net volume: 300 litres
Gross volume: 333 litres
Electric heated kettle with hydraulic tilting and electric tilting plus auto tilt-back. 7" high-visibility digital touch control. Two-direction variable-speed mixer 15–140 rpm. 9 pre-programmed mixing programs. Control pillar includes a GN 1/1 sized seamless workspace. Can be combined with other CulinoPro and Metos kettles without intermediate support pillar to save space.

Standard features

• CulinoPro kettle with integrated mixer
• Stepless mixing speed 15–140 rpm with auto reverse
• Elevated control pillar with guided touch panel
• Audio-visual signals for operator
• Functional timer
• 9 pre-set programs for production and washing
• ProTemp intelligent heating from gentle warming to full power
• Fully insulated kettle bowl panels
• User privilege levels with login
• Safety-grid lid
• Automatic measured water filling
• Electric tilting and auto tilt-back
• USB port on control panel for updates and HACCP data
• Teacher mode for demonstrations and training
• Machine error diagnostics for maintenance
• On-screen energy and water consumption measurement
• Steam jacket automatic water filling
• Measuring stick included

Optional features and accessories

• Strainer plates
• Whipping grids
• Two styles of hand shower
• Automated tap water cooling (C2)
• Decanting and pumping valves
• High-speed blender-top for pureeing soups and sauces

Control panel
Raised control pillar with a clear digital interface protected from bumps and steam. Only available functions are active. Info and error popups, status visible from a distance, and context help on screen. Protected USB connector for software updates and HACCP export. Optional integrated 230 V 10 A socket. User privilege levels and electric noise reduction as standard.

Timer and cooking functions
Selectable timed functions, cook & hold heat-holding function and egg-timer function.

Heating function
Real-time temperature display for product and jacket. Smart power setting for sensitive or full-power cooking. Temperature range 0°C…120°C, display precision 1°C. Max operating pressure 1.0 bar (corresponds to +120°C in jacket).

Automatic food water filling
Standard, touch-screen controlled water filling with set-litre and open/close buttons. Operates while tilting and at low inlet pressure. Includes practical waterspout for filling and rinsing.

Mixer features and programs
Bottom-mounted two-directional mixing tool with auto-reverse to avoid product damage at low speeds. Mixing range 15–140 rpm with separate power-mix button for additions. Nine tested mixing patterns:

• Stirring
• Whipping
• Mashing
• Gentle stirring
• Sautéing (powerful back-and-forth)
• Mashed potatoes (powerful back-and-forth)
• Desserts
• Porridges
• Dough

The mixer stops in under a second if the lid is opened. Removable mixing tool with detachable scrapers and quick-release stainless steel lid with 1/3-size safety grid.

HACCP and data
HACCP logs saved via USB from the control panel. Machine diagnostics and usage logs are available and downloadable for maintenance and troubleshooting.

Energy and water consumption measuring
Energy consumption visible on display and saved to diagnostics. Water consumption separates food water, bypass water and steam jacket filling and shows totals.

Tilting functions and ergonomics
Powerful electric tilting activated by button only. Auto tilt-back prevents overfilling; adjustable via parameters. Pouring spout height from floor 600 mm to facilitate emptying to large transport containers and washing.

Maintenance, diagnostics and safety
Usage log records operating hours and power outages. Diagnostic information aids maintenance. Software prevents accidental button presses and rapid mix-speed changes. Mixing with lid open is prevented. Kettle tilts only by button. Reminders for semi-automatic safety valve test and optional automatic steam condensing. In case of power or water outage the kettle notifies the user and records outage duration and affected program/temperature history. If water supply is inhibited the kettle will not heat product.

Teacher status
Safe training mode that prevents activation of functions while teaching; teaching app displays full control panel for demonstrations.

Cooling option
With C2 cooling, tap water can be circulated through the jacket to reduce product temperature according to inlet water properties.

Material and protection
Manufactured of stainless steel. Inner surface in acid-resistant 316 stainless steel. Outer panels insulated and only warm to the touch. Protection class IPX5.

Specifications

• SKU: 4224512
• Net volume: 300 litres
• Gross volume: 333 litres
• Capacity: 300 litres
• Weight: 415.0 kg
• Dimensions (W × D × H): 1560 × 1100 × 900/1535 mm
• Electrical: 400/230 V, 100 A, 51.6 kW, 3NPE, 50/60 Hz
• Cold water connection (CW): R½" (Ø15)
• Hot water connection (HW): R½" (Ø15)
• Mixing speed range: 15–140 rpm (two directions)
• Control panel: 7" touch screen, USB for updates & HACCP
• Tilting height from pouring spout to floor: 600 mm
• Material: inner 316 acid-resistant stainless steel
• Protection class: IPX5
