316 stainless steel kettle CULINOPRO 40E

not specified

Overview

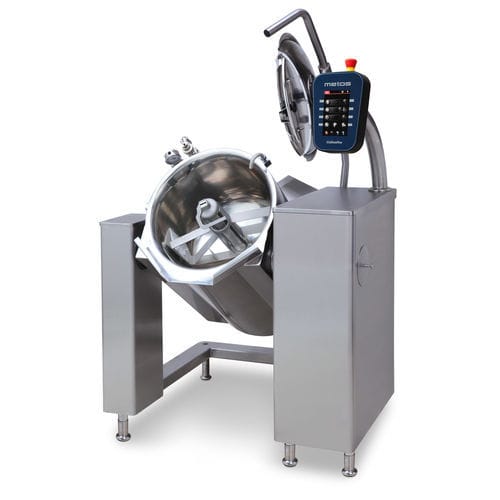

The Metos CulinoPro 40E (SKU 4224500) is a mixing combi kettle manufactured in Finland for professional kitchens. It combines automated mixing, electric tilting and intelligent heating control to streamline bulk food production, cleaning and HACCP data capture. Designed for floor-mounted or free-standing installation, the unit meets international and EU safety standards.

Key product aspects

• Gross volume 48 L / net usable 40 L.
• Electric heated combi kettle with electric tilting and auto tilt-back.
• Integrated mixer with step-less 15–140 rpm and auto-reverse.
• 7-inch high-visibility touch panel with raised control pillar and protected USB port.

Standard features

• Integrated mixing tool with detachable scrapers and safety-grid lid.
• Nine pre-set mixing programs for production and washing.
• ProTemp intelligent heating (0°C–120°C) with 1°C display precision and insulated bowl panels.
• Automatic measured water filling operable from touch screen.
• Audio-visual signals, functional timer and cook & hold function.
• USB HACCP export, machine diagnostics and usage logs.

Control panel

• Raised, protected touch interface with info/error popups and status display.
• User privilege levels and teacher mode for safe demonstrations.
• Protected USB connector for data export and software updates; optional integrated 230V 10A socket.

Timer & functions

• Functional timer with selectable timed functions and egg-timer mode.
• Cook & hold function for heat holding after cooking.

Heating function
Real-time display of food and jacket temperature. Smart power settings allow delicate heating up to full power. Temperature range 0°C–120°C; max jacket pressure 1.0 bar.

Automatic food water filling
Measured water filling controlled from the touch screen; set litres or open/close tap. Water spout designed for efficient filling at low pressure and usable during tilting.

Mixer features
Bottom-mounted two-directional mixing tool with auto-reverse prevents product damage at low speeds. Step-less speed 15–140 rpm and separate power-mix button. Nine professional mixing patterns (stirring, whipping, mashing, sauté, pureeing, etc.). Mixer stops instantly if lid is opened.

HACCP & data
HACCP and diagnostic logs saved via USB; usage logs recorded for maintenance and troubleshooting.

Energy & water consumption measuring
On-screen energy consumption readout exportable via USB. Water consumption (food water, bypass, jacket filling and total) is measured and displayed.

Tilting functions
Electric tilting with single-button operation and auto tilt-back. Pouring spout height to floor 600 mm for ergonomic emptying into transport containers.

Maintenance and fault diagnostics
Usage and operating hours logged to aid diagnostics; machine error diagnostics available for service teams. Information supports recovery after power or water outages.

Occupational safety
Software prevents accidental activation; mixer stops when lid is opened. Options include automatic steam condensing and semi-automatic safety valve tests. Kettle will not heat if water supply is inhibited.

Teacher status
Safe training mode allows full control-panel demonstration without activating functions; includes teaching app.

Cooling option
Optional C2 cooling circulates tap water through the jacket to cool product according to inlet water temperature.

Technical specifications

• SKU: 4224500
• Model: Metos CulinoPro 40E
• Gross volume: 48 litres
• Net volume: 40 litres
• Weight: 200.0 kg
• Dimensions: 1047 × 720 × 900/1535 mm
• Tilting height (spout to floor): 600 mm
• Material: stainless steel; inner surface acid resistant 316 stainless steel
• Protection class: IPX5
• Mixing speed: step-less 15–140 rpm, two directions, auto reverse
• Pre-programmed mixing programs: 9
• Control panel: 7-inch touch screen; raised pillar; protected USB
• Heating: ProTemp intelligent heating; 0°C–120°C; display precision 1°C; max jacket pressure 1.0 bar
• Electrical: 400/230 V, 32 A, 14 kW, 3NPE, 50/60 Hz
• Cold water (CW) connection: R½" (Ø15)
• Hot water (HW) connection: R½" (Ø15)
• Standard features: automatic measured water filling, electric tilting, auto tilt-back, audio-visual signals, removable mixing tool and lid, measuring stick, USB HACCP export, on-screen energy & water measuring
• Optional: 230V 10A socket, C2 cooling, blender-top, decanting/pumping valves, hand shower options
