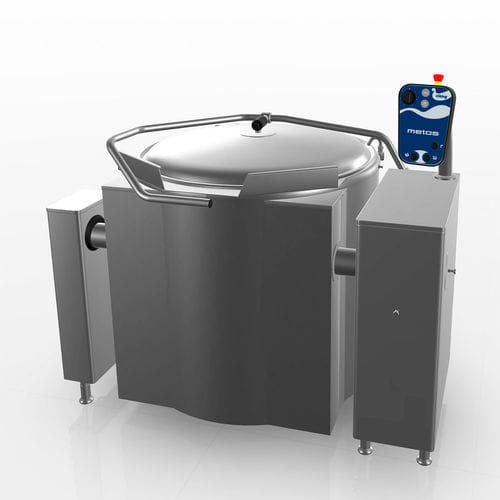

316 L stainless steel kettle VIKING 4G 400E

not specified

Description
Metos Viking 4G 400E (SKU: 4224114) electric tilting cooking kettle, fully manufactured in Finland. Basic model without mixer. Steam-jacketed design with temperature control for process heating. Tilting spout height to floor 600 mm. Ergonomic raised electromechanical control panel (IPX5) positioned out of water spray. Double-jacketed kettle with built-in steam generator. Removable sanitary parts for easy cleaning; dishwasher safe. Can be floor-fixed or free-standing and meets national and EU safety standards. Insulated bowl panels provide up to 90% energy efficiency; optional polyurethane insulation available.

Key features

• Raised control panel (ergonomic, elevated out of water spray)
• Hydraulic tilting with push-button operation
• Basic model supplied without mixer
• Compatible with other Viking and Metos kettles without intermediate support pillar (space saving)

Delivery includes

• Viking 4G kettle complete with hydraulic tilting (600 mm height)
• Stainless steel lid
• Food water filling
• Ergonomic raised control panel
• Emergency stop control
• Accessory hooks
• Separate measuring stick
• Support pillar
• Stainless steel (EN 1.4404)

Construction
Double-jacketed electrically powered kettle with its own steam generator. Standard fitted bowl panels are fully insulated with reflective foam pads for up to 90% energy efficiency. Options: seamless welded bowl construction and polyurethane foam insulation. Installation options: surface-mounted, semi-recessed or free-standing.

Control panel
Large electromechanical control panel is raised and ergonomic. Controls include temperature, tilting and jacket water level indicators plus an emergency stop button. Simple 'turn and select' operation logic. Protection rating IPX5.

Heating control
Jacket temperature range 0°C–120°C. Maximum operating pressure 1.0 bar (corresponds to +120°C in inner jacket). Design pressure 1.5 bar.

Tilting functions
Powerful hydraulic tilting operated by push button. Pouring spout height to floor 600 mm, suitable for use with compatible decanting trolleys.

Handshower options

• S1 Standard
• S2 Heavy Duty
• S3 Reel-in hand shower

Optional features

• Automatic food water filling — push-button operation; waterspout positioned for direct filling through safety grid lid
• Automatic jacket water filling
• Extra power socket — 230 V 16 A socket on rear of control panel
• Digital temperature display — product temperature readout on control panel (normally for mixing kettles)
• Cooling — available only with Viking Combi models with mixer
• Strainer plate — for stocks, sauces, rice, potatoes or other liquids
• Drain valve options — D1 (tangent valve) or D2 (connection for pumping)
• Safety grid lid

Occupational safety
Tilting operates at the push of a button and the kettle is fitted with a clearly visible emergency stop button for use in emergencies.

Product details

• Gross volume: 433 L
• Net volume: 400 L
• Capacity: 400 L
• Weight: 410.0 kg
• Dimensions: 1560 × 1100 × 1050/1535 mm
• Technical: 400/230 V, 100 A, 57.2 kW, 3NPE, 50/60 Hz
• CW: R½ (Ø15) HW: R½ (Ø15)

Caractéristiques / spécifications techniques

• SKU: 4224114
• Gross volume: 433 L
• Net volume: 400 L
• Capacity: 400 L
• Weight: 410.0 kg
• Dimensions: 1560 × 1100 × 1050/1535 mm
• Electrical: 400/230 V, 100 A, 57.2 kW, 3NPE, 50/60 Hz
• Jacket temperature range: 0°C–120°C (max operating pressure 1.0 bar; design pressure 1.5 bar)
• Tilting height to floor: 600 mm
• Materials: Stainless steel (EN 1.4404)
• Insulation: fitted bowl panels with reflective foam pad (up to 90% energy efficiency); optional polyurethane
• Control panel protection: IPX5
• Built-in steam generator
