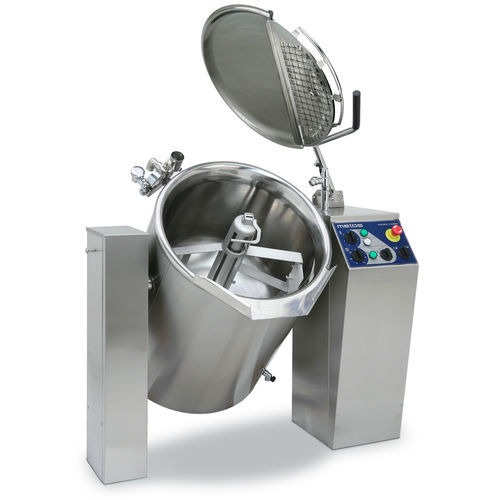

Stainless steel 316L kettle VIKING COMBI 100E SGL

Overview
The Metos Viking Combi Mixing Kettle is fully manufactured in Finland. Automated controls handle routine food production tasks and allow selection of mixing and temperature settings. With a 100 L net capacity and a 400 mm pouring spout height, the kettle is designed for efficient, hygienic professional kitchens. Stainless steel construction and comprehensive insulation provide energy-efficient operation and compliance with national and EU safety standards. The unit is secured to the floor for stable installation.

Key features

• Electric tilting with 400 mm pour height
• Large raised control panel, ergonomically positioned and IPX4 protected
• Variable two-direction mixing, adjustable 15–120 rpm
• Two pre-programmed mixing programs for common production tasks
• Removable mixing tool with wide surface and detachable Teflon scrapers
• Stainless steel construction (EN 1.4404)
• Reflective foam insulation for up to 90% energy efficiency
• Can be combined with other Viking and Metos kettles without intermediate support pillar

Delivery includes

• Viking Combi Kettle with 2 mixing programs
• Electric tilting mechanism
• Ergonomically raised control panel
• Emergency stop controls
• Accessory hooks
• Mixing tool
• Lift-off safety grid lid
• Separate measuring stick
• Support pillar
• Food water mixer tap

Control panel
Large ergonomically raised control panel with electromechanical controls for temperature and mixer settings and an emergency stop. Simple dial operation for reliable daily use.

Heating function
Steam-jacket temperature range 0°C–120°C. Heating is controlled by a rotary selector (positions 1–6). Maximum operating pressure 1.0 bar; design pressure 1.5 bar.

Mixer features
Bottom-mounted two-direction mixing tool with automatic reversing for thorough mixing without product damage. Mixer seals are positioned above product level to prevent leakage. Removable mixing tool with easy-to-clean scrapers. Speed stepped 15–120 rpm. Mixer locks when tilted to allow mixing during decanting and stops within one second if the lid is opened. Includes two tested mixing programs:

• Program 1: Soups — gentle stir-and-rest pattern
• Program 2: Sautéing or mashed potatoes — powerful back-and-forth pattern

Tilting functions
Durable electric tilting operated by push button. Pouring spout height to floor 400 mm (compatible with MPT 450 decanting trolley).

Occupational safety
Mixing stops under one second if the lid is opened; opening the lid during a program triggers an alarm and timer indication. Mixing with the lid open while upright is prevented in all situations to meet safety regulations.

Optional functions and accessories

• Automatic food water filling with button-operated spout through safety grid lid
• Handshower options: S1 Standard; S2 Heavy-duty

Technical specifications

• SKU: 4215942
• Weight: 162.0 kg
• Dimensions: 1154 × 805 × 1020 mm
• Capacity: 100 L (gross 111 L, net 100 L)
• Electrical: 400 V, 32 A, 18 kW, 3NPE, 50 Hz; CW: 15, HW: 10
• Material: Stainless steel EN 1.4404
• Insulation: Reflective foam, up to 90% energy efficiency
