316 stainless steel kettle CULINOPRO 80E

not specified

Product description

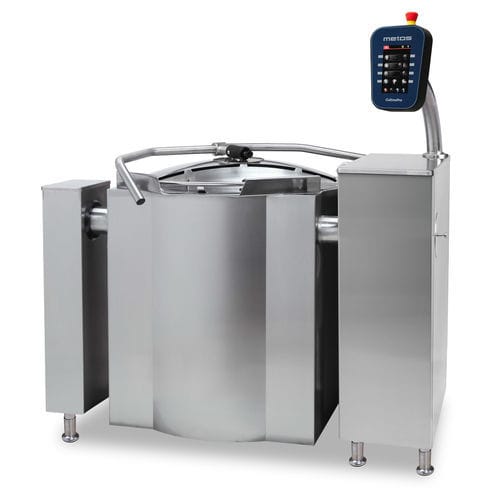

The Metos CulinoPro 80E is a 80 L net capacity mixing combi kettle designed for professional food production. Fully manufactured in Finland, it combines electric tilting, integrated two-direction mixer and programmable automation for safe, repeatable large-scale cooking and batch production.

General characteristics

• Electric kettle with electric tilting
• 7" high-visibility digital touch screen control panel
• Variable speed mixing in two directions 15–140 rpm
• 9 pre-programmed mixing programs
• Control pillar with GN 1/1 sized smooth workspace for chef tools
• Can be combined with other CulinoPro and Metos kettles without intermediate support pillar

Standard features

• CulinoPro kettle with integrated mixer
• Step-less mixing speed 15–140 rpm, auto reverse
• Elevated control pillar with guiding touch panel
• Audio-visual signals for user
• Functional timer
• 9 pre-set mixing programs for production recipes and washing
• ProTemp intelligent heating from gentle warming to full power; insulated kettle bowl panels
• User privilege levels
• Safety-grid lid
• Automatic measured water filling
• Electric tilting with auto tilt-back
• USB port on control panel for updates and HACCP data saving
• Teacher status for demonstrations and training
• Machine error diagnostics for maintenance and service teams
• On-screen energy and water consumption measuring
• Steam jacket automatic water filling
• Measuring stick

Control panel

• Fully raised control pillar with highly visible digital interface protected from bumps and steam
• Emergency stop button
• Protected from bumps and spray when washing
• Informative guiding touch screen; only available functions active
• Audio-visual signals and info/error popups
• Ongoing status visible from distance on status display
• User manual for current situation readable on screen
• Protected USB connector at back for updates and HACCP data
• Optional integrated electrical outlet 230V 10A
• User privilege levels requiring login
• Electric noise reduction system as standard

Timer functions

• Selected functions can be timed
• Cook & hold heat holding function
• Egg timer function

Heating function
Real-time temperature display for food and jacket. Smart power setting enables sensitive cooking or full power. Temperature range 0°C–120°C, display precision 1°C. Max operating pressure 1.0 bar (corresponds to +120°C in the jacket).

Automatic food water filling
Automatic measured water filling operated from the touch screen. Set litres or open/close tap; waterspout designed for low-pressure filling. Water filling usable while tilting.

Mixer features
Bottom-mounted two-direction mixing tool with auto-reverse allows mixing at low speeds without product damage. Speed range 15–140 rpm. Separate power mixing button for additions. Nine pre-designated mixing patterns:

• Stirring
• Whipping
• Mashing
• Gentle stirring
• Sautéing (back-and-forth pattern)
• Mashed potatoes (back-and-forth pattern)
• Desserts
• Porridges
• Dough

The mixer stops within a second if lid is opened. Removable mixing tool with detachable scrapers; quick-release stainless steel lid with 1/3 size safety grid.

Maintenance and diagnostics
Usage log and operating hours for diagnostics and maintenance. Diagnostic data simplifies troubleshooting. Soiled parts removable without special tools and dishwasher safe.

Occupational safety
Software prevents unintentional button presses and rapid mixer changes. Mixer stops if lid opened. Tilt operates only via push button. Automatic steam condensing available as option. Power-off/water outage records program status and temperatures; heating inhibited if water supply is absent. Reminds user to run semi-automatic safety valve test.

Teacher status
Safe training mode for demonstrations; teaching app displays complete control panel for instruction.

Cooling option
When configured with C2 cooling, tap water can be circulated through the jacket to reduce product temperature depending on inlet water temperature.

Technical specifications

• Weight: 230.0 kg
• Dimensions: 1154 × 720 × 900/1535 mm
• Capacity: 80 L (net)
• Gross volume: 91 L
• Technical information: 400/230 V, 40 A, 22 kW, 3NPE, 50/60 Hz
• Connections: CW: R½" (Ø15); HW: R½" (Ø15)
• Tilting height from pouring spout to floor: 600 mm
• Material: stainless steel; inner surface acid resistant 316 stainless steel
• Protection class: IPX5
