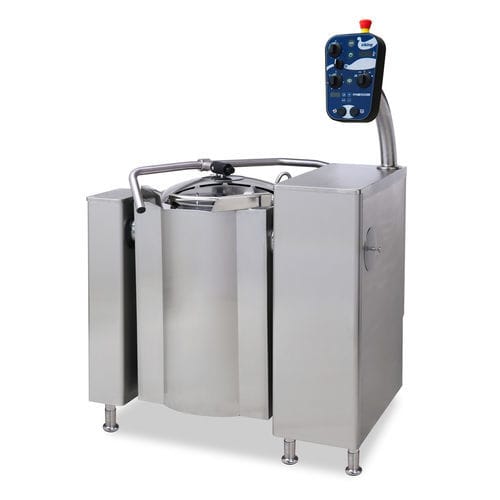

Stainless steel 316L kettle VIKING COMBI 4G 60E

Description
The Metos Viking Combi 4G 60E (MG4224202) is a 60 L electric combi kettle manufactured in Finland for professional food production. It enables simultaneous mixing and cooking with automated controls to reduce supervision. The machine is designed for ergonomic use, easy cleaning and hygienic operation. The pouring spout height when tilted to pour is 600 mm. Controls are raised and IPX5 protected to avoid spray exposure. Removable parts that contact food are tool-free detachable and dishwasher safe. The mixing tool has a large contact surface and removable Teflon scrapers. The stainless-steel lid includes a removable safety grid for safe ingredient addition. The unit complies with applicable national and EU safety standards.

Standard delivery includes

• Viking Combi Kettle 4G complete with 2 mixing programmes
• Electric tilting
• Fully raised control panel
• Emergency off controls
• Accessory hooks
• Mixing tool
• Lift-off safety grid lid
• Separate measuring stick
• Support pillar

Features and options

• Electric tilting with push-button operation
• Large ergonomically raised control panel with electromechanical controls, temperature and mixer controls and emergency stop
• Variable mixing in two directions, 15–120 rpm (step adjustment range noted up to 20–120 rpm)
• Two pre-programmed mixing programmes (1: soups — gentle stir and rest; 2: sautéing/meat/mashed potatoes — intensive back-and-forth mixing)
• Strong, maintenance-free auto-reverse mixer; heavy-duty version available
• Mixer axle seals positioned above food level to prevent leakage
• Mixer locks in place when tilted allowing mixing while decanting
• Optional automatic food water filling
• Hand-shower options: S1 standard, S2 heavy duty, S3 recoiled
• Cooling options: C1 open-circuit tap-water cooling (manual), C2 automatic open-circuit tap-water cooling
• Decanting/pumping options including D1 tangent draw off tap
• Can be combined with other Viking and Metos kettles without intermediate support pillar to save space

Technical details (table)
Weight: 205.0 kg
Dimensions: 1047 × 720 × 900/1535 mm
Capacity: Gross volume 68 L, Net volume 60 L
Electrical / technical: 400/230 V, 25 A, 12.5 kW, 3NPE, 50/60 Hz; Cold water (CW): R½" (Ø15); Hot water (HW): R½" (Ø15)
Temperature setting range: 0 °C … 120 °C, setting accuracy 1 °C within the steam jacket
Max operating pressure: 1.0 bar (corresponds to +120 °C in the inner jacket)
Material: Stainless steel EN 1.4404; bowl insulation with reflective foam (up to 90% energy efficiency); optional closed-cell polyurethane foam insulation available.

Technical specifications

• Model: Viking Combi 4G 60E
• SKU: 4224202
• Net capacity: 60 L
• Gross capacity: 68 L
• Tilting height (pouring spout to floor): 600 mm
• Weight: 205.0 kg
• Dimensions (W × D × H): 1047 × 720 × 900/1535 mm
• Power supply: 400/230 V, 3NPE, 50/60 Hz
• Rated power: 12.5 kW
• Rated current: 25 A
• Mixing speeds: variable, step adjustment range up to 20–120 rpm; two pre-programmed programmes
• Temperature range: 0–120 °C, accuracy 1 °C
• Max operating pressure: 1.0 bar
• Material: Stainless steel EN 1.4404
• Control panel protection: IPX5
• Insulation: reflective foam (standard), optional closed-cell polyurethane foam
