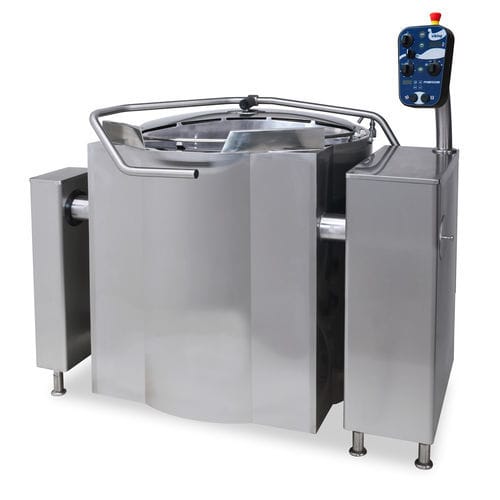

Stainless steel kettle VIKING COMBI 4G 300E

not specified

Overview
The Metos Viking Combi 4G Mixing Kettle is manufactured in Finland for professional food-production environments. It enables simultaneous mixing and cooking with automated controls for unattended routine operation. The design focuses on ease of use, simplified cleaning and energy-efficient operation. The control panel is raised and rated IPX5. Many components are removable for dishwasher cleaning; the stainless-steel lid includes a lift-off safety grid for ingredient addition.

Main features

• Hydraulic tilting with push-button operation
• Variable two-direction mixing 15–120 rpm (20–120 rpm adjustment for step mixing)
• Two pre-programmed mixing programs: 1) soups — gentle stir and rest; 2) sautéing/meat/vegetables — powerful back-and-forth
• Removable mixing tool with large surface and removable Teflon scrapers
• Auto-reverse, maintenance-free mixer (heavy-duty version available)
• Mixer axle seals positioned above food level to prevent leakage
• Mixer locks when tilted to allow mixing during decanting; mixer stops <1 second if lid opened
• Ergonomic raised control panel with electromechanical turn-and-select logic and emergency stop

Standard delivery includes

• Viking Combi 4G kettle with 2 mixing programs
• Hydraulic tilting
• Raised control panel
• Emergency off controls
• Accessory hooks
• Mixing tool
• Lift-off safety grid lid
• Separate measuring stick
• Support pillar

Optional features and accessories

• Hydraulic tilting (factory fitted if ordered)
• Large, clear control panel (factory-fitted options)
• Cooling C1 – tap water with manual hand-shower
• Cooling C2 – automatic tap-water cooling operated by control panel
• Automatic food water filling
• Automatic jacket water filling
• Hand-shower options: S1 standard, S2 heavy-duty, S3 recoiled
• Decanting/pumping: D1 tangent draw-off tap, D2 connection for pump fill systems
• Optional closed-cell polyurethane foam insulation for bowl

Heating function
Temperature range 0°C…120°C with 1°C setting accuracy in the steam jacket. Maximum operating pressure 1.0 bar (corresponding to +120°C in the inner jacket).

Installation
Can be floor-mounted using surface or subsurface installation frame kits (optional) or ordered free-standing (FS option) for faster delivery and setup. Multiple units can be grouped as free-standing kettles sharing a central control pillar to save space.

Mixer characteristics

• Strong, maintenance-free auto-reverse mixer
• Two-directional bottom-mounted mixing tool with automatic reversing to ensure thorough mixing without product damage
• Adjustment range and step mixing speed: 20–120 rpm
• Mixing programs developed and tested by food-service professionals

Tilting and occupational safety
Tilting height from pouring spout to floor: 600 mm (compatible with decanting trolleys). Mixer stops immediately if lid is opened; mixing with the lid open in upright position is prevented. Opening the cover during mixing triggers an alarm and the display shows the timer.

Automatic food water filling
Automatic water filling operates at the press of a button through a waterspout positioned to allow filling through the safety grid lid; can be used while tilting for rinsing.

Technical specifications

• SKU: 4224212
• Gross volume: 333 L
• Net volume / Capacity: 300 L
• Weight: 410.0 kg
• Dimensions: 1560 × 1100 × 900/1535 mm
• Electrical: 400/230 V, 80 A, 43.6 kW, 3NPE, 50/60 Hz
• Cooling / Water connections: CW: R½" (Ø15); HW: R½" (Ø15)
• Tilting height to floor: 600 mm
• Temperature range: 0°C … 120°C (1°C accuracy in steam jacket)
