316 stainless steel kettle PROVENO 40E

not specified

Overview

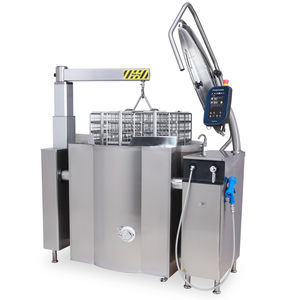

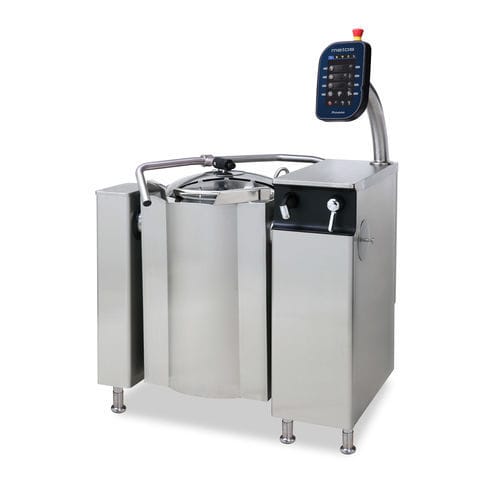

The Metos Proveno 40E mixing combi kettle is a 40 L net-capacity, electric tilting production kettle designed for continuous food processing with programmable automation, integrated mixing and HACCP traceability. Built for professional kitchens and food manufacturing where repeatable recipes, hygiene and energy monitoring are required.

Key capabilities
Gross volume 48 L; net volume 40 L. Electric tilting mechanism. High-visibility 9-inch colour touchscreen. Two-directional variable mixing 10–160 rpm with 9 pre-programmed mixing programs and unlimited custom programs. Can be paired with other Proveno/Metos kettles without intermediate support pillar.

Options

• Strainer plates
• Whipping grids
• Various hand shower styles
• Automated cooling systems (C3i, C3iPA closed systems; C2 open system; C5i combined variants)
• Decanting
• Pumping valves
• DiagoMix lid
• GN pouring support
• Work light
• High-speed blender top (40–100 L) for purees, soups and sauces

Standard features

• Proveno kettle with integrated mixer
• Stepless mixing speed 10–160 rpm, auto-reverse
• Elevated control pillar with 9" glove‑usable touchscreen
• Audio-visual user signals
• Multi-functional timer, unlimited on-screen programs and program phases, recipe bank
• Pre-set production and washing programs
• Mixing patterns and saving of custom patterns
• ProTemp real-time temperature control for food and jacket
• Intelligent heating for low-temperature and full-power modes (sous-vide, proving, tempering)
• Delta-T cooking mode
• Fully insulated kettle bowl
• User privilege levels and teacher mode
• 1/3 safety-grid lid
• Automatic measured water filling
• Electric or hydraulic tilting (size dependent)
• Tilting while mixing and auto tilt-back
• Graphical HACCP display, searchable by date
• Energy and water consumption monitoring
• On-screen calculator and diagnostics
• USB port (IP68) for program and HACCP data

Material
Inner surface in acid-resistant 316 stainless steel; outer panels stainless steel and standard insulated. Optional polyurethane foam insulation for bowl panels to increase rigidity and thermal efficiency. Protection rating IPX5.

Control panel

• Large elevated control panel with informative touchscreen
• Emergency stop button
• Protected from bumps and spray during washdown
• Contextual on-screen functions and error/info popups
• Remote-visible status display
• User manual accessible on-screen
• IP68 protected USB connector for updates and HACCP data
• Optional integrated 230V 10A socket
• Optional RJ45 LAN port for third-party cloud connectivity (installation work not included)

Timer and programming
Multiple timers and timed functions: cook & hold, egg timer, timed heating/mixing, mixing pattern scheduling, timed water discharge and water additions. Programming, editing and saving via touchscreen; unlimited programs and phases; favourite pages for frequent recipes.

HACCP and data
Graphical HACCP set points and alarms with recorded heating, mixing and cooling cycles searchable by date. HACCP and program data exportable via USB.

Heating function
ProTemp real-time control allows setting food temperature, jacket temperature or Delta-T. Temperature display for both food and jacket; range up to 120°C with 1°C precision. Maximum jacket pressure 1.0 bar. Smart power profiles support delicate or full-power heating modes.

Automatic water filling
Standard controlled water filling via touchscreen: set litres or manual tap. Water spout designed for low-pressure filling and operable while tilting.

Mixer features
Bottom-mounted two-directional mixer with auto-reverse, step-less speed 10–160 rpm and separate power-mix function for raw ingredients. Mixing while tilting supported. Nine pre-programmed patterns plus custom pattern saving. Mixer stops immediately if lid opened. Removable mixing tool and detachable scrapers; quick-release stainless steel lid with 1/3 safety grid for cleaning.

Tilting functions
Electric or hydraulic tilting system (size dependent) operated by push button; tilting only while button pressed. Auto tilt-back to prevent overfilling. Pouring spout to floor height 600 mm. Slow mixing while tilting standard. Optional foot pedal for hands-free tilting while mixing.

Cooling (optional)
With cooling configured, jacket circulation of chilled water (via chiller or ice bank) can reduce product temperature from ~95°C to ~3°C in ~1 hour depending on viscosity and size. Available systems: C3i/C3iPA (closed), C2 (open), C5i (combined). Some PA variants limited by size or steam configuration.

Other functions
Consumption tracking (energy and water) viewable and saved to diagnostics; water use breakdown by food water, bypass, jacket fill and total. Machine logs operating hours and usage. Safety features include prevention of accidental button presses, mixer stop on lid open, alarms/timers and reminders for semi-automatic safety valve tests.

Technical specifications

• Model: Proveno 40E
• Volume: Gross 48 L, Net 40 L
• Capacity: 40 litres
• Weight: 200.0 kg
• Dimensions: 1047 × 720 × 900/1535 mm
• Tilting spout height to floor: 600 mm
• Electrical: 400/230 V, 32 A, 14 kW, 3NPE, 50/60 Hz
• Cold water connection: R½" (Ø15)
• Hot water connection: R½" (Ø15)
• Mixing speed: stepless 10–160 rpm, two-directional, auto-reverse
• Pre-programmed mixing: 9 plus unlimited custom
• Control panel: 9" colour touchscreen; USB (IP68); optional RJ45 LAN
• Temperature: up to 120°C, precision 1°C; max jacket pressure 1.0 bar
• Material: Inner 316 acid-resistant stainless steel; outer stainless steel, insulated; optional polyurethane foam insulation
• Protection rating: IPX5
• Standard: automatic measured water filling, tilting while mixing, auto tilt-back, HACCP logging and graphical display, energy/water monitoring, on-screen calculator, teacher mode, error diagnostics
