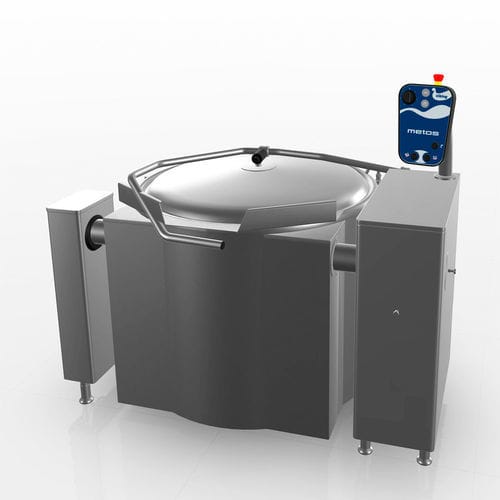

Stainless steel 316L kettle VIKING 4G 300E

Product description
The Metos Viking 4G 300E is a 300 L electrically heated, double‑jacketed tilting cooking kettle manufactured in Finland. Designed for professional kitchens, it offers hydraulic tilting, raised electromechanical controls (IPX5) and removable components for easy cleaning and maintenance. The unit can be floor‑mounted or free‑standing and meets applicable EU and national safety standards.

Delivery includes

• Viking 4G kettle complete with hydraulic tilting (600 mm pouring height)
• stainless steel lid
• automatic food water filling
• ergonomic raised control panel
• emergency stop controls
• accessory hooks
• separate measuring stick
• support pillar

Material
Stainless steel (EN 1.4404).

Construction
Double‑jacketed electrically powered kettle with its own steam generator. Standard fitted bowl panels are insulated with a reflective foam pad delivering up to 90% energy efficiency. Options: polyurethane foam insulation and seamless welded bowl construction. Installation: surface, subsurface or free‑standing.

Control panel
Ergonomic, fully raised electromechanical control panel with temperature, tilting and jacket water level indicators and an emergency stop button. Simple turn‑and‑select operation; controls positioned clear of water spray.

Heating function
Steam jacket temperature adjustable from 0°C to 120°C. Maximum operating pressure 1.0 bar (equivalent to +120°C in the inner jacket). Design pressure 1.5 bar.

Tilting functions
Hydraulic tilting operated at the push of a button. Pouring spout to floor height: 600 mm, suitable for use with decanting trolleys.

Handshower options

• S1 Standard
• S2 Heavy Duty
• S3 Reel‑in hand shower

Occupational safety
The kettle tilts only when the button is activated and includes a clearly visible emergency stop for immediate shutdown.

Automatic functions (options)

• AUTOMATIC FOOD WATER FILLING: push‑button operation; filling through safety grid lid
• AUTOMATIC WATER FILLING TO JACKET: automated jacket filling
• EXTRA POWER SOCKET: 230V 16A socket on rear of control panel
• DIGITAL TEMPERATURE DISPLAY: product temperature display on control panel (typically with mixer models)
• COOLING: available only with Viking Combi models with mixer
• STRAINER PLATE: for straining stocks, sauces, rice, potatoes or other liquids
• DRAIN VALVE options: D1 (tangent valve), D2 (connection for pumping)
• SAFETY GRID LID: optional

Notes
Gross Volume: 333 L; Net Volume: 300 L.

Technical specifications

• Weight: 350.0 kg
• Dimensions: 1560 × 1100 × 900/1535 mm
• Capacity: 300 L
• Gross volume: 333 L; Net volume: 300 L
• Technical information: 400/230 V, 63 A, 40 kW, 3NPE, 50/60 Hz
• Cold water (CW) connection: R½" (Ø15)
• Hot water (HW) connection: R½" (Ø15)
• Material: Stainless steel EN 1.4404
• Insulation: fitted bowl panels with reflective foam pad (up to 90% energy efficiency); optional polyurethane foam insulation and seamless welding bowl
• Tilting height (pouring spout to floor): 600 mm
• Control panel: raised electromechanical panel, IPX5 protected, temperature/tilting/jacket water level indicators and emergency stop
