Stainless steel kettle VIKING COMBI 4G 80E

316 L stainless steelnot specified

Product description

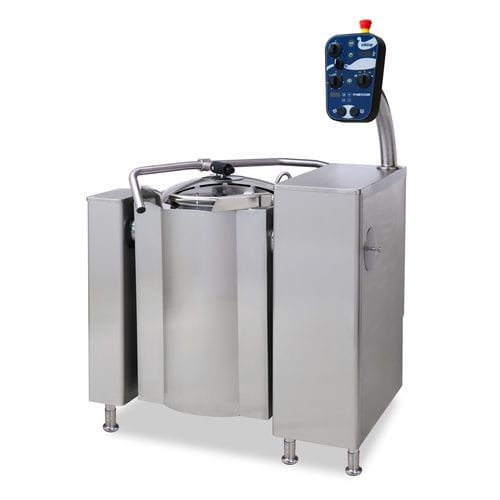

The Metos Viking Combi 4G 80E is a 80 L stainless-steel combi kettle designed for professional kitchens. Fully manufactured in Finland, it combines automated mixing and cooking with electric tilting for efficient batch processing and safe decanting.

Key product features

• Integrated electromechanical controls with IPX5 protection
• Removable mixing tool with Teflon scrapers for easy cleaning
• Stainless-steel lid with removable safety grid for ingredient addition
• Variable two-directional mixing (15–120 rpm) and two pre-programmed mixing programs

Standard delivery includes

• Viking Combi Kettle 4G complete with 2 mixing programs
• Electric tilting mechanism
• Fully raised control panel
• Emergency stop controls
• Accessory hooks and support pillar
• Mixing tool and Lift Off Safety Grid Lid
• Separate measuring stick

Available / optional features

• Large, ergonomically raised control panel
• Variable mixing in two directions 15–120 rpm; step mixing 20–120 rpm
• Integration with other Viking and Metos kettles without intermediate support
• Automatic food water filling and automatic jacket water filling
• Hand-shower variants and cooling options C1 / C2
• Decanting options: D1 tangent draw off tap or D2 pump connection

Control panel
Ergonomically raised electromechanical panel with temperature and mixing controls and emergency stop. Optional factory-installed features available at extra charge.

Heating function
Temperature range 0°C–120°C with 1°C setting accuracy in the steam jacket. Maximum operating pressure 1.0 bar (inner jacket up to +120°C).

Installation
Can be floor-mounted using surface or subsurface installation frames (option) or ordered free-standing (FS option). Units can be grouped to share a central control pillar.

Mixer features
Maintenance-free auto-reverse mixer with bottom-mounted two-directional tool. Mixer seals remain above product level to prevent leakage. Mixer locks when tilted and stops immediately if the lid opens. Two mixing programs included: 1) soups — gentle stir/rest cycle; 2) sautéing/mashing — powerful back-and-forth cycle.

Tilting functions
Electric tilting operated by button; pouring spout height to floor 600 mm, compatible with decanting trolleys.

Occupational safety
Mixing stops in under a second if the lid opens. Opening the lid during a program triggers an alarm and displays timer information. Mixing with the lid in the upright open position is prevented by safety interlocks.

Automatic food water filling (Option)
Water filling by push-button via a spout through the safety grid lid; usable during tilting for rinsing pasta or rice.

Hand-shower (Option)

• S1 – standard hand-shower
• S2 – heavy-duty hand-shower
• S3 – recoiled hand-shower

Automatic jacket water filling (Option)
Automatic jacket water filling available to replace manual filling where frequent changes are required.

Cooling options
COOLING C1 (Option)
Open-circuit tap-water cooling (manual connection); uses inlet water temperature and does not reduce below inlet temperature.

COOLING C2 (Option)
Open-circuit tap-water cooling automatically controlled from the panel; uses inlet water and does not cool below inlet temperature.

Decanting / Pumping (Option)
Options for D1 tangent draw-off tap or D2 connection for pump fill systems.

Technical specifications

• SKU: 4224204
• Model: Viking Combi 4G 80E
• Brand: Metos
• Gross volume: 91 L
• Net volume / Capacity: 80 L
• Weight: 225.0 kg
• Dimensions: 1154 × 720 × 900/1535 mm
• Electrical: 400/230 V, 32 A, 14 kW, 3NPE, 50/60 Hz
• Cooling / connections: CW: R½" (Ø15), HW: R½" (Ø15)
• Tilting height (pouring spout to floor): 600 mm
• Mixing speed ranges: variable 15–120 rpm; step mixing 20–120 rpm
• Control panel protection: IPX5
• Material: Stainless steel (EN 1.4404); bowl insulation with reflective foam (option: closed cell polyurethane foam)
