316 stainless steel kettle CULINOPRO 60E

not specified

Description

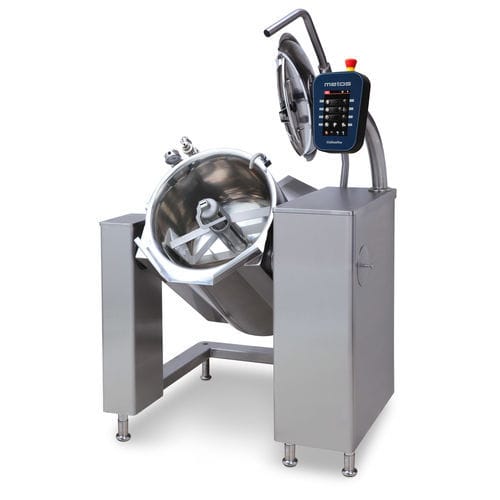

The Metos CulinoPro 60E (MG4224502) is a mixing combi kettle fully manufactured in Finland for professional food production. Automation supports routine processes, while programmable mixing and automated water and temperature control simplify operation, cleaning and HACCP compliance. The unit is available as floor-fixed or free-standing to adapt installation needs and meets international and EU safety standards.

Key product highlights

• Gross volume 68 L, net volume 60 L.
• Electric heated combi kettle with integrated mixer and electric tilting.
• 7" high-visibility digital touch screen control panel.
• Variable-speed mixing in two directions: 15–140 rpm, stepless with auto reverse.
• 9 pre-programmed mixing programs for production and washing.
• Control pillar includes GN 1/1 sized smooth, seamless workspace.
• Can be combined with other CulinoPro and Metos kettles without an intermediate support pillar.
• Wide optional accessory range: strainers, whipping grids, hand showers, tap-water cooling, decanting/pumping valves, high-speed blender-top.

Standard features

• Integrated mixer and stepless mixing speed 15–140 rpm, auto reverse.
• Elevated control pillar with guiding touch panel and audio-visual signals.
• Functional timer, teacher status for training, and 9 pre-set programs.
• ProTemp intelligent heating from gentle warming to full power; fully insulated bowl panels.
• User privilege levels and machine diagnostics for maintenance.
• Safety-grid lid and quick-release stainless-steel lid with 1/3 size safety grid.
• Automatic measured water filling and low-pressure capable waterspout usable during tilting.
• Electric tilting with auto tilt-back to prevent overfilling.
• USB port for updates and HACCP data; protected rear USB connector.
• On-screen energy and water consumption measuring, data saved to diagnostics and downloadable via USB.
• Steam jacket automatic water filling; measuring stick included.

Control panel
Raised control panel with clear digital interface protected from bumps and steam. Active functions only are available. Features include emergency stop, guiding touch screen, audio-visual signals and info/error popups, distant status display, on-screen context help, optional integrated 230 V 10 A socket, and an electric noise reduction system.

Timer and heating functions

• Timed functions, cook & hold and egg timer available.
• Real-time display of food and jacket temperatures.
• Smart power setting for sensitive or full-power cooking.
• Temperature range 0°C–120°C with 1°C accuracy; max jacket pressure 1.0 bar.

Automatic food water filling
Touch-screen controlled measured filling with buttons for set litres or open/close tap. Works at low incoming water pressure and while tilting (e.g., rinsing pasta).

Mixer features
Bottom-mounted two-directional mixing tool with auto-reverse to prevent product breakage; speed 15–140 rpm. Separate power mixing button for additions. Nine tested mixing patterns:

• stirring
• whipping
• mashing
• gentle stirring
• sautéing (back-and-forth pattern)
• mashed potatoes (back-and-forth pattern)
• desserts
• porridges
• dough

The mixer stops instantly if the lid opens. Removable mixing tool with detachable scrapers; dishwasher-safe components where applicable.

HACCP, energy & water measuring
HACCP data stored via USB. Energy consumption readable on display and saved to diagnostics. Water consumption displayed separately for food water, bypass water, steam jacket filling and total use.

Tilting, maintenance & diagnostics
Electric tilting activated by push button with auto tilt-back. Pouring spout height to floor 600 mm for easy emptying to large containers. Usage log supports recovery after power outages and diagnostic data aids maintenance.

Occupational safety
Software prevents accidental button presses and rapid mixer speed changes. Mixer pauses if lid opens. Heating is inhibited without water supply. Unit records outage durations and program temperatures and reminds to run semi-automatic safety valve tests. Optional automatic steam condensing before cooling.

Teacher status
Safe training mode that displays the control panel without activating functions; includes teaching app for operator training.

Cooling option
C2 cooling configuration circulates tap water through the jacket to reduce product temperature relative to inlet water.

Technical specifications

• Weight: 210.0 kg
• Dimensions: 1047 × 720 × 900/1535 mm
• Capacity: 60 litres (net), gross 68 litres
• Electrical / technical: 400/230 V, 32 A, 18 kW, 3NPE, 50/60 Hz
• Cooling / water connections: CW: R½" (Ø15), HW: R½" (Ø15)
• Material: Stainless steel with acid-resistant 316 stainless steel inner surface
• Protection class: IPX5
• Tilting height (pouring spout to floor): 600 mm
• SKU on page: 4224502
