Stainless steel kettle VIKING 200E

316 L stainless steel

Overview

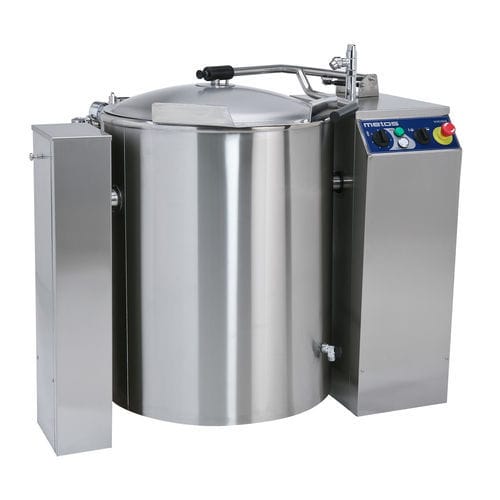

The Metos Viking 200E tilting cooking kettle is manufactured in Finland for professional kitchens. It features a 200 L net capacity steam-jacketed vessel with temperature control, electric tilting and an ergonomically raised control panel (IPX4). The unit is floor-mounted and designed for easy cleaning, safe operation and energy-efficient use.

Key features

• Electric tilting for controlled pouring
• Large, raised and clear control panel (IPX4)
• Can be combined with other Viking and Metos kettles without an intermediate support pillar

Volume
Gross Volume: 219 L
Net Volume: 200 L

Delivery includes

• Viking Kettle complete with electric tilting, stainless steel hinged lid, ergonomically raised control panel, emergency off controls, accessory hooks
• Separate measuring stick
• Support pillar
• Food water mixer tap

Construction and insulation
All food-contact parts in stainless steel (EN 1.4404). The kettle is insulated with reflective foam to reduce heat loss and improve energy efficiency (up to ~90%).

Control panel
The large electromechanical control panel is ergonomically raised toward the user. It provides temperature and mixing tool controls and a clearly positioned emergency stop. Control panel protection rating: IPX4.

Heating function
Steam-jacket temperature setting range 0°C…120°C. Heating selection uses a dial (positions 1–6). Maximum operating pressure 1.0 bar (corresponding to +120°C in the inner jacket). Design pressure: 1.5 bar.

Tilting functions
Durable electric tilting activated by push button. Tilting height from pouring spout to floor: 400 mm, compatible with MPT 450 decanting trolley.

Occupational safety
Tilting is initiated only by button operation. Emergency stop control is included for immediate shutdown.

Automatic food water filling (Option)
Push-button water filling with spout located for filling through the safety grid lid.

Handshower (Option)

• S1 standard handshower
• S2 heavy duty handshower

Technical specifications

• Weight: 200.0 kg
• Dimensions: 1360 × 940 × 1040 mm
• Capacity: 200 L
• Gross Volume: 219 L
• Net Volume: 200 L
• Electrical: 400/230 V, 50 A, 30 kW, 3NPE, 50 Hz
• CW: 15, HW: 10
• Maximum operating pressure: 1.0 bar (corresponds to +120°C in the inner jacket)
• Design pressure: 1.5 bar
• Tilting height (pouring spout to floor): 400 mm
• Control panel protection: IPX4
