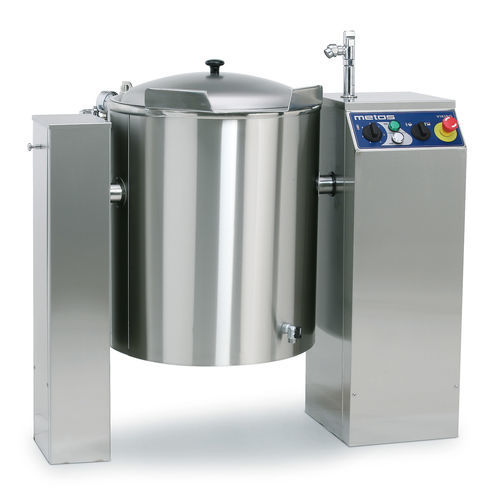

316 L stainless steel kettle VIKING 60E

not specified

Product overview
The Metos Viking kettle is fully manufactured in Finland and designed for professional kitchens. Temperature can be selected to match recipe requirements. The pouring spout tilts to a height of 400 mm from the floor. Optimised ergonomics ensure straightforward operation, easy cleaning and hygienic handling. High thermal insulation increases energy efficiency, making the unit economical in continuous use. The kettle is floor-mounted and complies with national and EU safety standards. User controls are angled towards the operator and the control panel is IPX4 protected. Removable parts that contact food are dishwasher-safe and removable without special tools.

Key features

• Electric tilting mechanism
• Large, ergonomically raised control panel
• Can be combined with other Viking/Metos kettles without intermediate support pillar (space saving)
• Stainless steel construction (EN 1.4404)
• Reflective foam insulation for up to 90% energy efficiency

Delivery includes

• Viking kettle with electric tilting
• Lift-off stainless steel lid
• Ergonomically raised control panel
• Emergency stop controls
• Accessory hooks
• Separate measuring stick
• Support pillar

Control panel
The large control panel is ergonomically raised and angled to the user. The electromechanical interface includes temperature and mixing-tool controls plus an emergency stop button. Operation follows a clear "turn and select" logic.

Heating function
Temperature range 0°C to 120°C in the steam jacket. Heating is selected by a simple dial with settings 1–6. Maximum operating pressure is 1.0 bar (corresponding to +120°C in the inner jacket). Design pressure of the Viking kettles is 1.5 bar.

Tilting functions
Powerful electric tilting operates at the press of a button. The pouring spout height to floor is 400 mm, suitable for use with the MPT 450 decanting trolley.

Occupational safety
Tilting is only performed by deliberate button actuation; emergency stop is provided for immediate shutdown.

Optional functions and accessories

• Automatic food-water filling (option) — automatic filling at the press of a button; water inlet accessible through the safety grid lid
• Handshower options: S1 Handshower, S2 Handshower
• Lid options: Hinged Lid, Safety Grid Lid

Notes
A wide range of optional features and accessories is available to adapt the kettle to specific production requirements.

Technical specifications

• SKU: 4215341
• Gross volume: 68 L (as indicated in product text)
• Net volume / Capacity: 60 L
• Weight: 116.0 kg
• Dimensions: 1047 × 650 × 1020 mm
• Technical information: 400/230 V, 16 A, 10.5 kW, 3NPE, 50 Hz
• CW: 15
• HW: 10
