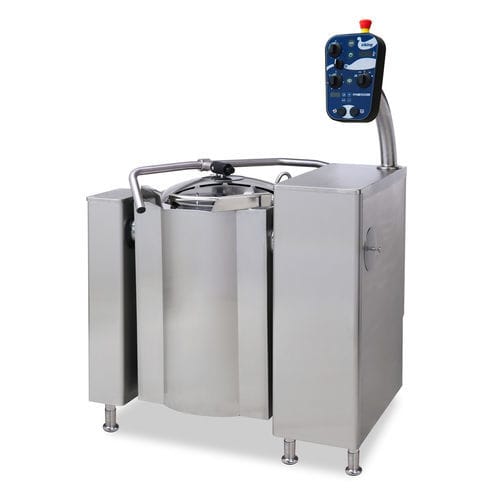

Stainless steel 316L kettle VIKING COMBI 4G 40E

Description
The Metos Viking Combi 4G 40E is a 40 L electric combi kettle manufactured in Finland for professional food production. It combines stirring and cooking with reliable automation and ergonomic design to support continuous kitchen operations, easy cleaning and compliance with EU safety standards.

Standard delivery includes

• Viking Combi Kettle 4G complete with 2 mixing programs
• Electric tilting
• Fully raised control panel
• Emergency off controls
• Accessory hooks
• Mixing tool
• Lift Off Safety Grid Lid
• Separate measuring stick
• Support pillar

Mixer features

• Strong, maintenance-free, auto-reverse mixer for mixing and whipping; heavy-duty version available for extra heavy loads
• Two-directional mixing, bottom mounted, automatic reversing function mixes thoroughly without breaking the product
• Mixing tool axle seals remain above food height to prevent leakage
• Removable mixing tool with easy-to-clean Teflon scrapers
• Mixing speed: variable in two directions 15–120 rpm (step range referenced as 20–120 rpm)
• Mixer locks in place when tilted; mixer stops in less than a second if the lid is opened
• Two pre-designated mixing programs (1. Soups: gentle stir-and-rest; 2. Sautéing/meat/vegetables/puréed potato: powerful back-and-forth)

Tilting and usability
Electric tilting operated at the press of a button with a pouring spout height of 600 mm from floor, compatible with MPT 450 decanting trolley. Mixer locks when tilted to allow safe mixing during decanting. Controls are raised and IPX5 protected for washdown safety. Removable parts are dishwasher-safe for fast cleaning.

Optional features and accessories

• Electric tilting (factory option)
• Large and clear control panel (option)
• Variable mixing in two directions 15–120 rpm (option/feature)
• 2 pre-programmed mixing programs (standard)
• Can be combined with other Viking and Metos kettles without intermediate support pillar
• Cooling C1: tap water cooling, open circuit, manual with hand-shower S1 or S2
• Cooling C2: tap water cooling, automatic via control panel
• Automatic food water filling (option)
• Automatic jacket water filling (option)
• Digital temperature display (option)
• Hand-shower options: S1 standard, S2 heavy duty, S3 recoiled
• Decanting/pumping: D1 tangent draw off tap (option)

Occupational safety
The mixer stops in less than a second if the lid is opened. Opening the lid during a mixing program triggers an alarm and displays an active timer. Mixing with the lid open in the upright position is prevented by safety interlocks in accordance with regulations.

Technical specifications

• SKU: 4224200
• Gross volume: 48 L
• Net volume: 40 L
• Capacity: 40 L
• Weight: 195.0 kg
• Dimensions: 1047 × 720 × 900/1535 mm
• Electrical: 400/230 V, 25 A, 11.5 kW, 3NPE, 50/60 Hz
• Water connections: CW: R½" (Ø15); HW: R½" (Ø15)
• Temperature setting range: 0°C…120°C, setting accuracy 1°C within the steam jacket
• Max operating pressure: 1.0 bar (corresponds to +120°C in the inner jacket)
• Control panel protection: IPX5
• Material: Stainless steel (EN 1.4404)
• Insulation: Reflective foam providing up to ~90% energy efficiency; optional closed cell polyurethane foam insulation available for extra strength and seamless welding of bowl covers
• Mixing speed / adjustment range: 15–120 rpm (variable two directions); step mixing adjustment referenced as 20–120 rpm
