316 stainless steel kettle CULINOPRO 100E

stainless steelnot specified

Description

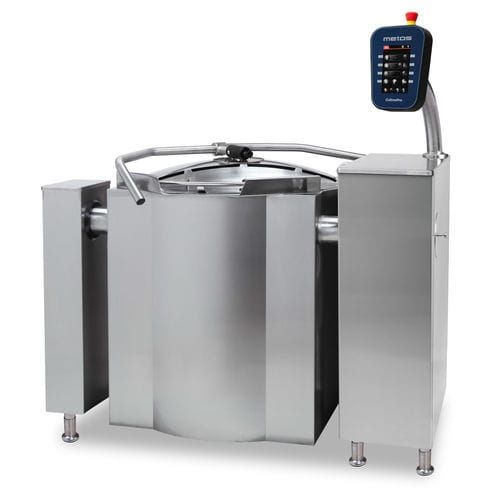

The Metos CulinoPro 100E (SKU 4224506) is a 100-litre mixing combi kettle designed for professional kitchens and industrial food production. Fully manufactured in Finland, the unit combines automated mixing, precise temperature control and controlled water filling to streamline routine production and cleaning.

Main technical summary
Net volume: 100 L. Gross volume: 111 L. Electric kettle with electric tilting. Tilting height (pouring spout to floor): 600 mm. Protection class: IPX5. Temperature range: 0°C to 120°C.

Standard features

• Integrated mixer in the CulinoPro kettle
• Stepless mixing speed 15–140 rpm, auto-reverse
• Elevated control pillar with guiding 7-inch high‑visibility touchscreen
• Audio‑visual user signals and functional timer
• 9 pre-set mixing programs for production and cleaning
• ProTemp intelligent heating and fully insulated bowl panels
• User privilege levels and teacher status for training
• Safety-grid lid and automatic measured water filling
• Electric tilting with auto tilt-back
• USB port for software updates and HACCP data export

Mixer features and mixing programs
The bottom-mounted mixing tool operates in two directions with auto-reverse and removable scrapers for easy cleaning. The mixer stops immediately if the lid is opened.

• Variable two‑direction speed 15–140 rpm
• 9 pre-programmed programs: stirring, whipping, mashing, gentle stirring, sautéing (back-and-forth), mashed potatoes (high-power back-and-forth), desserts, porridges, dough
• Separate power-mix button for adding raw materials or spices

Control panel
The raised control pillar houses a protected touchscreen and provides clear status information and guided on‑screen instructions.

• Emergency stop
• Guiding touchscreen with only available functions active
• Info and error popups; visible status from a distance
• On-screen user manual and machine diagnostics
• Protected USB connector and optional integrated 230 V socket
• User login levels and built‑in noise reduction

Timer, heating and filling functions

• Timer modes including cook & hold and egg timer
• Real-time temperature display for food and jacket, 1°C precision
• Max operating pressure 1.0 bar (equivalent to +120°C in jacket)
• Automatic measured food water filling, adjustable litres or tap control via touchscreen; filling usable while tilting

HACCP, diagnostics and measurements

• HACCP data logging downloadable via USB
• Energy and water consumption measuring, with separate readings for food water, bypass water, steam jacket fill and total
• Operational log for hours and diagnostic data to support maintenance

Safety and ergonomic features
Software prevents accidental button presses and sudden mixer speed changes. Mixing is disabled with lid open; tilting requires deliberate activation and auto tilt-back prevents overfilling. Teacher mode and semi-automatic safety valve test support safe training and routine checks.

Technical specifications

• SKU: 4224506
• Model: CulinoPro 100E
• Net volume: 100 L / Gross volume: 111 L
• Weight: 265.0 kg
• Dimensions: 1154 × 720 × 900/1535 mm (W × D × H)
• Electrical: 400/230 V, 40 A, 22 kW, 3NPE, 50/60 Hz
• Cold water (CW): R½" (Ø15); Hot water (HW): R½" (Ø15)
• Material: stainless steel, inner surface AISI 316 acid‑resistant
• Protection class: IPX5
• Mixing speed: stepless 15–140 rpm, two directions, auto‑reverse
• Pre-programmed mixing programs: 9
• Control: 7-inch touchscreen, emergency stop, protected USB for HACCP and updates
• Temperature range: 0°C…120°C (1°C precision)
• Max operating pressure: 1.0 bar
• Tilting height (spout to floor): 600 mm
