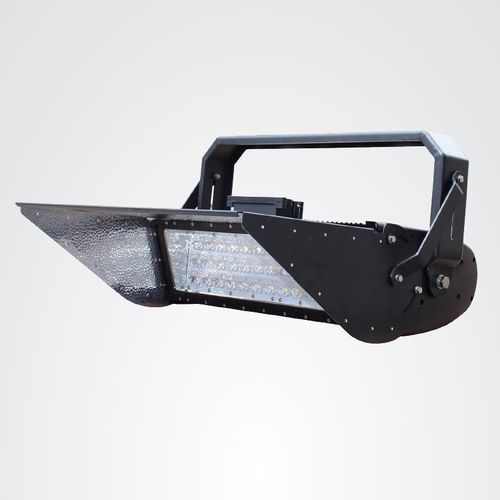

IP65 floodlight JNHM2-1250S-5000-A1-DIM

LEDfor sports fieldsfor stadium

High-power LED high-mast floodlight designed for concentrated, symmetric illumination of large outdoor areas and high-mast installations. Supplied with Philips Lumileds LEDs and Meanwell drivers; offers 0-10V dimming for flexible light control.

Key points

• Dimmable LED high-mast floodlight for focused lighting applications.
• Robust outdoor rating (IP65) and IK08 impact resistance for demanding environments.
• Tempered glass lens and marine-grey housing for durability and corrosion resistance.

Characteristics / technical specifications

• Product SKU: JNHM2-1250S-5000-A1-DIM
• Power Consumption: 1250 W
• System Power (W): 1295 W
• Input Voltage: 120-277 V AC (347~488 V AC optional)
• Input Voltage Range: 120-277V AC / 347~488V AC (optional)
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell HLG-1000H
• Color Temperature (K): 5000 K
• Color Rendering Index (CRI): >70
• Total Lumens Output: 143,500 lm
• Efficacy: 120 lm/W
• Beam Angle (°): 15° (fixed)
• Beam Angle Range: 15°x15° (Fixed), Beam Angle Format: Symmetric
• Number of LED Modules: 8 modules
• Dimming Capability: 0-10V
• Power Factor: >0.95
• Surge Protection: 10 kV
• IK Impact Rating: IK08
• IP Rating: IP65
• Lens Material: Tempered Glass
• Housing Colour: Marine-Grey
• Fixture Height: 550 mm
• Fixture Length: 480 mm
• Fixture Width: 320 mm
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 95% RH
• Lifespan (Hours): 80,000 hours
• Warranty Period: 5 years
