IP65 floodlight JNHM2-1250S-5700-A5-ND
LEDfor stadiumfor airport

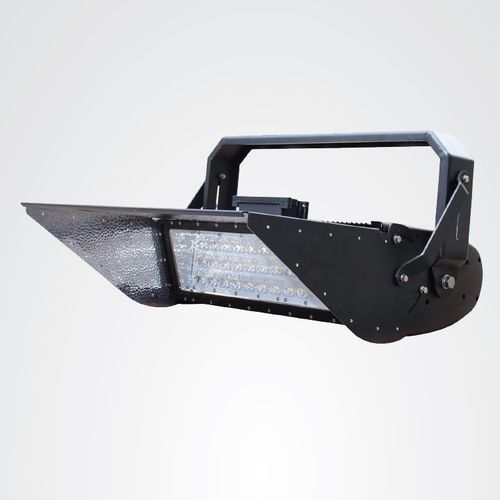

IP65 floodlight - JNHM2-1250S-5700-A5-ND - JNLED - LED / for stadium / for airport
IP65 floodlight - JNHM2-1250S-5700-A5-ND - JNLED - LED / for stadium / for airport
IP65 floodlight - JNHM2-1250S-5700-A5-ND - JNLED - LED / for stadium / for airport - image - 2
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Protection class
IP65
Light source
LED
Application
for stadium, for airport, road, industrial
Interior/exterior use
outdoor
Type
pole-mounted
Shape
rectangular
Dimmable
not dimmable
Other characteristics
high-efficiency, high-intensity, energy-saving, IK08
Height

Max.: 550 mm
(22 in)

Min.: 550 mm
(22 in)

Length

Max.: 480 mm
(19 in)

Min.: 480 mm
(19 in)

Width

Max.: 320 mm
(13 in)

Min.: 320 mm
(13 in)

Power

Max.: 1,250 W
(1.7 hp)

Min.: 1,250 W
(1.7 hp)

Luminous flux

Max.: 143,500 lm

Min.: 143,500 lm

Color temperature

Max.: 5,700 K

Min.: 5,700 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Product overview

This high-mast LED floodlight is engineered for far-throw, medium and short beam distributions to provide uniform large-area outdoor illumination. The sealed IP65 enclosure and IK08 impact resistance ensure reliable operation in demanding industrial environments. The non-dimmable fixture delivers high lumen output and extended lifetime, suitable for stadiums, ports, airfields and large logistics yards.

Applications

  • Sports stadiums and arenas
  • Airports and apron lighting
  • Seaports and container terminals
  • Industrial yards, logistics and storage facilities
  • Highway interchanges and large outdoor areas


Technical specifications

  • Product SKU: JNHM2-1250S-5700-A5-ND
  • Power Consumption: 1250 W
  • System Power: 1295 W
  • Input Voltage: 120-277 V (standard) — optional 347~488 V AC
  • Beam Angle (°): 60°
  • Beam Angle Range: 15°x15° (Fixed)
  • Beam Angle Format: Symmetric
  • Total Lumens Output: 143,500 lm
  • Efficacy: 120 lm/W
  • LED Type: Philips Lumileds
  • Number of LED Modules: 8 modules
  • LED Driver Brand: Meanwell HLG-1000H
  • Color Temperature (K): 5700
  • Color Rendering Index (CRI): >70
  • Dimming Capability: Non-dimmable
  • IP Rating: IP65
  • IK Impact Rating: IK08
  • Housing Colour: Marine-Grey
  • Lens Material: Tempered Glass
  • Power Factor: >0.95
  • Surge Protection: 10kV
  • Input Cable: H07RN-F 3G2.5
  • Working Temperature Range: -20°C ~ 45°C
  • Working Humidity Range: 10% - 95% RH
  • Lifespan: 80,000 hours
  • Fixture Height: 550 mm
  • Fixture Length: 480 mm
  • Fixture Width: 320 mm
  • Net Weight: 23 kg
  • Export Carton Dimensions: 900 x 1350 x 487 mm
  • Products per Carton: 2
  • Export Carton Gross Weight: 26 kg
  • Replaces: 100 Watt metal halide/HID/HPS (as stated)
  • Warranty Period: 5 years
