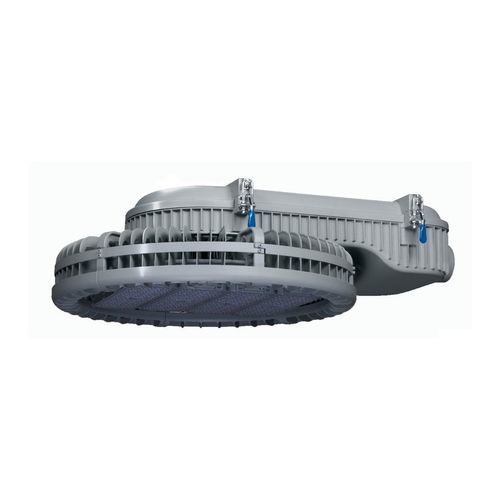

IP65 floodlight JNHM1-450S-4000-A4-ND
LEDfor stadiumindustrial

IP65 floodlight - JNHM1-450S-4000-A4-ND - JNLED - LED / for stadium / industrial
IP65 floodlight - JNHM1-450S-4000-A4-ND - JNLED - LED / for stadium / industrial
IP65 floodlight - JNHM1-450S-4000-A4-ND - JNLED - LED / for stadium / industrial - image - 2
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
for stadium, industrial
Interior/exterior use
outdoor
Type
pole-mounted
Dimmable
not dimmable
Other characteristics
energy-saving, high-efficiency, IK08
Height

Max.: 854 mm
(34 in)

Min.: 854 mm
(34 in)

Length

Max.: 610 mm
(24 in)

Min.: 610 mm
(24 in)

Width

Max.: 238 mm
(9 in)

Min.: 238 mm
(9 in)

Power

Max.: 450 W
(0.61 hp)

Min.: 450 W
(0.61 hp)

Luminous flux

Max.: 63,500 lm

Min.: 63,500 lm

Color temperature

Max.: 4,000 K

Min.: 4,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Description
450 W high-mast LED floodlight fitted with original Philips Lumileds LEDs and Meanwell HLG-480H driver. Non-dimmable, IP65 ingress protection and IK08 impact rating. Delivers up to 63,500 lm (140 lm/W) at 4000 K. Designed for industrial high-mast applications such as ports, yards, stadiums and shipyards. Replaces 100 Watt metal halide/HID/HPS.

Features
  • Original Philips Lumileds LEDs
  • Meanwell HLG-480H driver
  • Non-dimmable
  • IP65 ingress protection
  • IK08 impact rating
  • Marine-Grey housing
  • Beam: 30°x140° (Type_i)
  • 4 LED modules


Product specifications (extracted from spec table)
  • Product SKU: JNHM1-450S-4000-A4-ND
  • Power Consumption: 450 W
  • Input Voltage: 120-277 V
  • Beam Angle (°): 30°
  • IP Rating: IP65
  • Color Rendering Index: >70
  • LED Type: Philips Lumileds
  • Colour Temperature (K): 4000
  • IK Impact Rating: IK08
  • Dimming Capability: Non-dimmable
  • Housing Colour: Marine-Grey
  • Warranty Period (Years): 5
  • Power Factor: >0.95
  • Surge Protection: 10kV
  • Input Cable: H07RN-F 3G1.0
  • Working Temperature Range: -20°C ~ 45°C
  • Working Humidity Range: 10%-95% RH
  • Lifespan (Hours): 80,000 hours
  • Beam Angle Range: 30°x140° (Fixed)
  • Beam Angle Format: Type_i
  • Number of LED Modules: 4 modules
  • LED Driver Brand: Meanwell HLG-480H
  • Lens Material: Tempered Glass
  • System Power (W): 495 W
  • Input Voltage Range: 120-277V AC / 347~488V AC (optional)
  • Fixture Height (mm): 854 mm
  • Fixture Length (mm): 610 mm
  • Fixture Width (mm): 238 mm
  • Total Lumens Output: 63,500 lm
  • Efficacy (lm/W): 140 lm/W


Packaging & Shipping
  • Net Weight (kg): 30 kg
  • Export Carton Dimensions (mm): 900×700×320 mm
  • Products per Carton: 2
  • Export Carton Gross Weight (kg): 34 kg


Technical specifications
  • Product SKU: JNHM1-450S-4000-A4-ND
  • Power Consumption: 450 W
  • System Power: 495 W
  • Input Voltage: 120-277 V (option 347~488 V AC)
  • LED Type: Philips Lumileds
  • LED Driver: Meanwell HLG-480H
  • Colour Temperature: 4000 K
  • CRI: >70
  • Beam Angle: 30°x140° (Fixed) / Type_i
  • Total Lumen Output: 63,500 lm
  • Efficacy: 140 lm/W
  • Number of LED Modules: 4
  • Lens: Tempered Glass
  • IP Rating: IP65
  • IK Rating: IK08
  • Power Factor: >0.95
  • Surge Protection: 10 kV
  • Input Cable: H07RN-F 3G1.0
  • Working Temperature: -20°C ~ 45°C
  • Working Humidity: 10% - 95% RH
  • Lifespan: 80,000 hours
  • Housing Colour: Marine-Grey
  • Fixture Dimensions (H×L×W): 854 mm × 610 mm × 238 mm
  • Net Weight: 30 kg
  • Export Carton Dimensions: 900 × 700 × 320 mm
  • Products per Carton: 2
  • Export Carton Gross Weight: 34 kg
  • Warranty: 5 years
