IP65 floodlight JNHM1-450S-4000-A3-NDLEDoutdoornot dimmable
Add to favorites
Compare this product
Characteristics
- Protection class
- IP65
- Light source
- LED
- Interior/exterior use
- outdoor
- Dimmable
- not dimmable
- Other characteristics
- IK08
- Height
Min.: 854 mm
(34 in)Max.: 854 mm
(34 in)- Length
Min.: 610 mm
(24 in)Max.: 610 mm
(24 in)- Width
Min.: 238 mm
(9 in)Max.: 238 mm
(9 in)- Power
Min.: 450 W
(0.61 hp)Max.: 450 W
(0.61 hp)- Luminous flux
Min.: 63,500 lm
Max.: 63,500 lm
- Color temperature
Min.: 4,000 K
Max.: 4,000 K
- Color rendering index (CRI)
Min.: 70 unit
Max.: 100 unit
Description
Short description

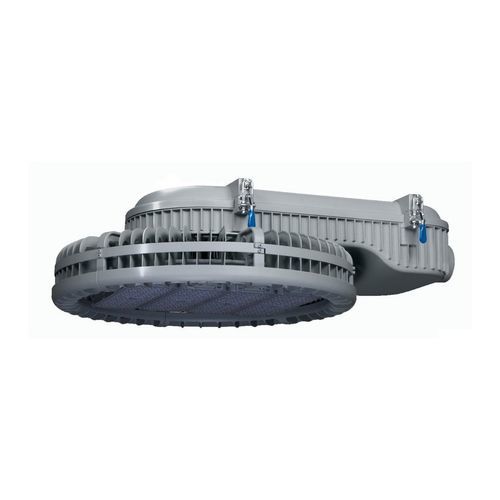

450 W LED high-mast floodlight equipped with Philips Lumileds LEDs and Meanwell HLG-480H driver. Non-dimmable. Fixed Type III distribution 40°×140°. Colour temperature 4000 K (natural white). Rated IP65 and IK08 for outdoor industrial use.
Product specifications
Product SKU: JNHM1-450S-4000-A3-ND
Power consumption: 450 W
Input voltage: 120–277 V (optional 347–488 V)
Beam angle: 40°×140° (Type III)
Total luminous flux: 63,500 lm
Efficacy: 140 lm/W
IP/IK rating: IP65 / IK08
Color rendering index (CRI): >70
Packaging & Shipping
Net weight: 30 kg
Export carton dimensions: 900×700×320 mm — Products per carton: 2 — Gross weight per carton: 34 kg
Fixture dimensions (H×L×W): 854×610×238 mm
Technical features
450 W LED high-mast floodlight equipped with Philips Lumileds LEDs and Meanwell HLG-480H driver. Non-dimmable. Fixed Type III distribution 40°×140°. Colour temperature 4000 K (natural white). Rated IP65 and IK08 for outdoor industrial use.
Product specifications
Product SKU: JNHM1-450S-4000-A3-ND
Power consumption: 450 W
Input voltage: 120–277 V (optional 347–488 V)
Beam angle: 40°×140° (Type III)
Total luminous flux: 63,500 lm
Efficacy: 140 lm/W
IP/IK rating: IP65 / IK08
Color rendering index (CRI): >70
Packaging & Shipping
Net weight: 30 kg
Export carton dimensions: 900×700×320 mm — Products per carton: 2 — Gross weight per carton: 34 kg
Fixture dimensions (H×L×W): 854×610×238 mm
Technical features
- Product SKU: JNHM1-450S-4000-A3-ND
- Power Consumption: 450 W
- Input Voltage: 120-277 V (optional 347~488 V)
- Beam Angle: 40° (40°x140° fixed) — Type_iii
- IP Rating: IP65
- CRI: >70
- LED Type: Philips Lumileds
- Color Temperature: 4000 K
- IK Rating: IK08
- Dimming: Non-dimmable
- Housing Colour: Marine-Grey
- Warranty Period: 5 years
- Power Factor: >0.95
- Surge Protection: 10kV
- Input Cable: H07RN-F 3G1.0
- Working Temperature Range: -20°C ~ 45°C
- Working Humidity Range: 10%-95% RH
- Lifespan: 80,000 hours
- Number of LED Modules: 4 modules
- LED Driver Brand: Meanwell HLG-480H
- Lens Material: Tempered Glass
- System Power: 495 W
- Total Lumens Output: 63,500 lm
- Efficacy: 140 lm/W
