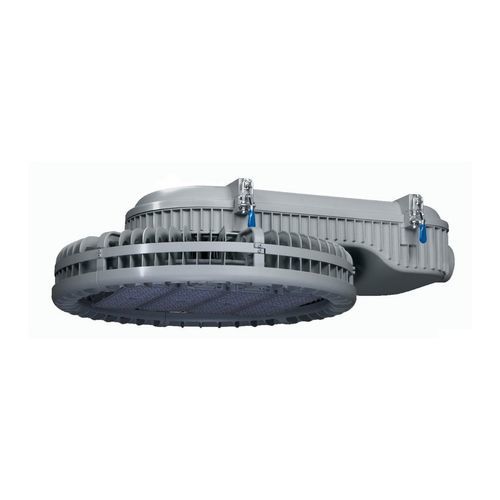

IP65 floodlight JNHM1-450S-3000-A5-DIM

LEDindustrialoutdoor

Short description
450 W LED high-mast floodlight designed for large-area industrial and outdoor lighting. Equipped with Philips Lumileds LEDs and Meanwell HLG-480H driver. Warm white 3000 K, dimmable (0-10V), IP65 and IK08 rated for harsh environments.

Product Specifications
Product SKU: JNHM1-450S-3000-A5-DIM
Power Consumption: 450 W
Input Voltage: 120-277 V (347~488 V optional)
Beam Angle (°): 140°x140° (Type V)
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Color Temperature (K): 3000 K
IK Impact Rating: IK08
Dimming Capability: 0-10V
Housing Colour: Marine-Grey
Warranty Period (Years): 5
Power Factor: >0.95
Surge Protection: 10 kV
Input Cable: H07RN-F 3G1.0
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-95% RH
Lifespan (Hours): 80,000 hours
Beam Angle Range: 140°x140° (Fixed)
Beam Angle Format: Type_v
Number of LED Modules: 4 modules
LED Driver Brand: Meanwell HLG-480H
Lens Material: Tempered Glass
System Power (W): 495 W
Total Lumens Output: 63,500 lm
Efficacy (lm/W): 140 lm/W

Packaging & Shipping
Net Weight (kg): 30 kg
Export Carton Dimensions (mm): 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 34 kg
Fixture Height (mm): 854 mm
Fixture Width (mm): 238 mm
Fixture Length (mm): 610 mm

Technical specifications

• Product SKU: JNHM1-450S-3000-A5-DIM
• Power Consumption: 450 W
• Input Voltage: 120-277 V (347~488 V AC optional)
• Beam Angle: 140°x140° (Type_v)
• IP Rating: IP65
• CRI: >70
• LED Type: Philips Lumileds
• Colour Temperature: 3000 K
• IK Rating: IK08
• Dimming: 0-10V
• Housing Colour: Marine-Grey
• Warranty: 5 years
• Power Factor: >0.95
• Surge Protection: 10 kV
• Input Cable: H07RN-F 3G1.0
• Operating Temperature: -20°C to 45°C
• Humidity Range: 10%-95% RH
• Lifespan: 80,000 hours
• Number of LED Modules: 4
• LED Driver Brand: Meanwell HLG-480H
• Lens Material: Tempered Glass
• System Power: 495 W
• Total Lumens: 63,500 lm
• Efficacy: 140 lm/W
