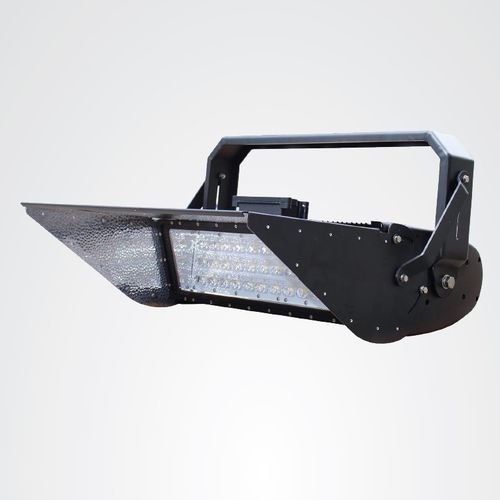

IP65 floodlight JNHM2-1250S-5000-A4-DIMLEDindustrialfor stadium
Add to favorites
Compare this product
Characteristics
- Protection class
- IP65
- Light source
- LED
- Application
- industrial, for stadium
- Interior/exterior use
- outdoor
- Type
- pole-mounted
- Shape
- rectangular
- Beam type
- spot
- Dimmable
- dimmable
- Other characteristics
- IK08, high-efficiency, energy-saving
- Height
Max.: 550 mm
(22 in)Min.: 550 mm
(22 in)- Length
Max.: 480 mm
(19 in)Min.: 480 mm
(19 in)- Width
Max.: 320 mm
(13 in)Min.: 320 mm
(13 in)- Power
Max.: 1,250 W
(1.7 hp)Min.: 1,250 W
(1.7 hp)- Luminous flux
Max.: 143,500 lm
Min.: 143,500 lm
- Color temperature
Max.: 5,000 K
Min.: 5,000 K
- Color rendering index (CRI)
Max.: 100 unit
Min.: 70 unit
Description
High-power dimmable LED high-mast floodlight designed for outdoor and industrial installations. Intended as a modern replacement for metal halide / HID / HPS luminaires, it provides long service life and robust environmental protection.
Features
Technical specifications
Applications
Packaging & warranty
Features
- Dimmable lighting compatible with standard industrial dimming protocols (0-10V)
- Robust outdoor construction with IP65 ingress protection and IK08 impact resistance
- Optimised narrow symmetric 30° beam for targeted illumination
- High system efficacy and long rated lifespan for reduced maintenance
- Surge protection (10 kV) and high power factor >0.95
Technical specifications
- Product SKU: JNHM2-1250S-5000-A4-DIM
- Power Consumption: 1250 W
- System Power (W): 1295 W
- Total Lumens Output: 143,500 lm
- Efficacy: 120 lm/W
- Input Voltage: 120-277 V
- Input Voltage Range (optional): 120-277V AC / 347-480V AC (optional)
- LED Type: Philips Lumileds
- LED Driver Brand: Meanwell HLG-1000H
- Color Temperature: 5000 K
- Color Rendering Index (CRI): >70
- Beam Angle: 30° (symmetric)
- Beam Angle Range (format): 15°x15° (Fixed) — Symmetric
- Number of LED Modules: 8 modules
- Dimming Capability: 0-10V
- IP Rating: IP65
- IK Impact Rating: IK08
- Housing Colour: Marine-Grey
- Lens Material: Tempered Glass
- Surge Protection: 10kV
- Power Factor: >0.95
- Input Cable: H07RN-F 3G2.5
- Working Temperature Range: -20°C ~ 45°C
- Working Humidity Range: 10% - 95% RH
- Lifespan (Hours): 80,000 hours
- Fixture Height: 550 mm
- Fixture Length: 480 mm
- Fixture Width: 320 mm
- Net Weight: 23 kg
- Export Carton Dimensions (mm): 900 x 1350 x 487 mm
- Products per Carton: 2
- Export Carton Gross Weight: 26 kg
- Warranty Period: 5 years
Applications
- Replacement for metal halide/HID installations in stadiums, ports, container yards and large outdoor industrial sites
- Suitable for high-mast lighting, façade and area lighting where targeted, high-intensity illumination is required
Packaging & warranty
- Packaged 2 units per export carton with protective packaging
- Export carton gross weight: 26 kg
- Warranty: 5 years standard
