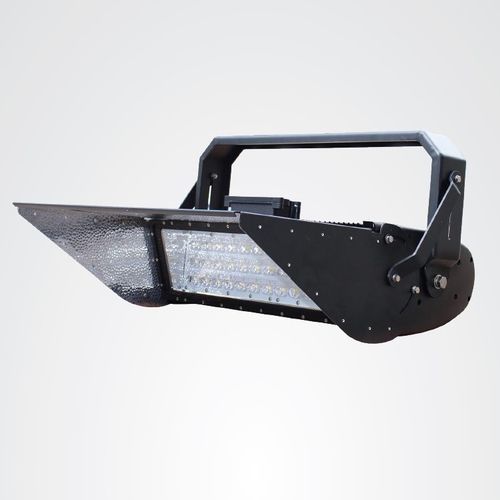

IP65 floodlight JNHM2-1250S-5700-A1-DIMLEDoutdoorpole-mounted
Add to favorites
Compare this product
Characteristics
- Protection class
- IP65
- Light source
- LED
- Interior/exterior use
- outdoor
- Type
- pole-mounted
- Shape
- rectangular
- Beam type
- spot
- Dimmable
- dimmable
- Other characteristics
- IK08
- Height
Max.: 550 mm
(22 in)Min.: 550 mm
(22 in)- Length
Max.: 480 mm
(19 in)Min.: 480 mm
(19 in)- Width
Max.: 320 mm
(13 in)Min.: 320 mm
(13 in)- Power
Max.: 1,250 W
(1.7 hp)Min.: 1,250 W
(1.7 hp)- Luminous flux
Max.: 143,500 lm
Min.: 143,500 lm
- Color temperature
Max.: 5,700 K
Min.: 5,700 K
- Color rendering index (CRI)
Max.: 100 unit
Min.: 71 unit
Description
Overview
1250 W LED high-mast floodlight fitted with Philips Lumileds LEDs and Meanwell HLG-1000H driver(s). Dimmable (0–10V) and IP65-rated for outdoor/high-mast installations. Symmetric 15°x15° beam, 5700 K.
Technical specifications
1250 W LED high-mast floodlight fitted with Philips Lumileds LEDs and Meanwell HLG-1000H driver(s). Dimmable (0–10V) and IP65-rated for outdoor/high-mast installations. Symmetric 15°x15° beam, 5700 K.
Technical specifications
- Product SKU: JNHM2-1250S-5700-A1-DIM
- Power Consumption: 1250 W
- System Power: 1295 W
- Input Voltage: 120-277V AC (347~488V AC optional)
- Input Voltage (alternate wording): 120-277 (tag)
- Beam Angle (°): 15° (15°x15° fixed, symmetric)
- Beam Angle Range / Format: 15°x15° (Fixed) • Symmetric
- Total Lumens Output: 143,500 lm
- Efficacy: 120 lm/W
- Colour Temperature (K): 5700 K
- Color Rendering Index (CRI): >70
- LED Type: Philips Lumileds
- LED Driver Brand: Meanwell HLG-1000H
- Dimming Capability: 0-10V
- Power Factor: >0.95
- Surge Protection: 10 kV
- IP Rating: IP65
- IK Impact Rating: IK08
- Lens Material: Tempered Glass
- Number of LED Modules: 8 modules
- Fixture Height: 550 mm
- Fixture Length: 480 mm
- Fixture Width: 320 mm
- Fixture Net Weight: 23 kg
- Working Temperature Range: -20°C ~ 45°C
- Working Humidity Range: 10% - 95% RH
- Lifespan: 80,000 hours
- Housing Colour: Marine-Grey
- Warranty Period: 5 years
- Input Cable: H07RN-F 3G2.5
- Packaging - Export Carton Dimensions: 900 x 1350 x 487 mm
- Packaging - Products per Carton: 2
- Packaging - Export Carton Gross Weight: 26 kg
