IP65 floodlight JNHM2-1250S-5700-A5-DIMLEDindustrialfor stadium
Add to favorites
Compare this product
Characteristics
- Protection class
- IP65
- Light source
- LED
- Application
- industrial, for stadium
- Interior/exterior use
- outdoor
- Type
- pole-mounted
- Shape
- rectangular
- Dimmable
- dimmable
- Other characteristics
- high-efficiency, IK08
- Height
Min.: 550 mm
(22 in)Max.: 550 mm
(22 in)- Length
Min.: 480 mm
(19 in)Max.: 480 mm
(19 in)- Width
Min.: 320 mm
(13 in)Max.: 320 mm
(13 in)- Power
Min.: 1,250 W
(1.7 hp)Max.: 1,250 W
(1.7 hp)- Luminous flux
Min.: 143,500 lm
Max.: 143,500 lm
- Color temperature
Min.: 5,700 K
Max.: 5,700 K
- Color rendering index (CRI)
Min.: 70 unit
Max.: 100 unit
Description

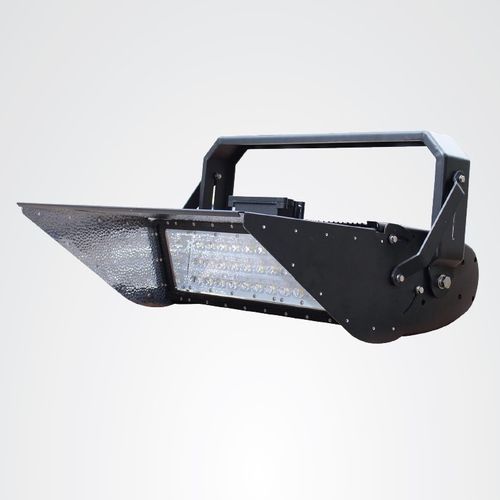

High-performance LED high-mast floodlight designed for large-area illumination such as stadiums, ports and industrial yards. Built for durability and long life with marine-grade housing and high-efficiency LEDs.
Packaging & Shipping
Technical specifications
Packaging & Shipping
- Net Weight: 23 kg
- Export Carton Dimensions: 900 x 1350 x 487 mm
- Products per Carton: 2
- Export Carton Gross Weight: 26 kg
- Fixture Height: 550 mm
- Fixture Width: 320 mm
- Fixture Length: 480 mm
Technical specifications
- Product SKU: JNHM2-1250S-5700-A5-DIM
- Power Consumption: 1250 W
- System Power (W): 1295 W
- Input Voltage: 120-277 V AC (347~488V AC optional)
- Beam Angle (°): 90°x90° (Fixed)
- Beam Angle Format: Symmetric
- IP Rating: IP65
- IK Impact Rating: IK08
- Color Rendering Index (CRI): >70
- LED Type: Philips Lumileds
- Color Temperature (K): 5700 K
- Dimming Capability: 0-10V
- LED Driver Brand: Meanwell HLG-1000H
- Number of LED Modules: 8 modules
- Lens Material: Tempered Glass
- Housing Colour: Marine-Grey
- Warranty Period (Years): 5
- Power Factor: >0.95
- Surge Protection: 10 kV
- Input Cable: H07RN-F 3G2.5
- Working Temperature Range: -20°C ~ 45°C
- Working Humidity Range: 10% - 95% RH
- Lifespan (Hours): 80,000 hours
- Total Lumens Output: 143,500 lm
- Efficacy (lm/W): 120 lm/W
- Fixture Height (mm): 550 mm
- Fixture Length (mm): 480 mm
- Fixture Width (mm): 320 mm
