IP65 floodlight JNHM1-450S-4000-A1-DIM
LEDoutdoorpole-mounted

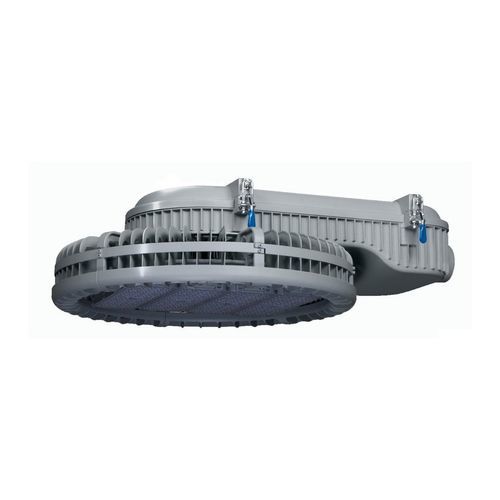

IP65 floodlight - JNHM1-450S-4000-A1-DIM - JNLED - LED / outdoor / pole-mounted
IP65 floodlight - JNHM1-450S-4000-A1-DIM - JNLED - LED / outdoor / pole-mounted
IP65 floodlight - JNHM1-450S-4000-A1-DIM - JNLED - LED / outdoor / pole-mounted - image - 2
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Interior/exterior use
outdoor
Type
pole-mounted
Shape
rectangular
Beam type
wall washer
Dimmable
dimmable
Other characteristics
IK08
Height

Max.: 854 mm
(34 in)

Min.: 854 mm
(34 in)

Length

Max.: 610 mm
(24 in)

Min.: 610 mm
(24 in)

Width

Max.: 238 mm
(9 in)

Min.: 238 mm
(9 in)

Power

Max.: 450 W
(0.61 hp)

Min.: 450 W
(0.61 hp)

Luminous flux

Max.: 63,500 lm

Min.: 63,500 lm

Color temperature

Max.: 4,000 K

Min.: 4,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Description
The JNHM1-450S-4000-A1-DIM is a 450 W LED high-mast floodlight engineered for outdoor and high-mast installations. It integrates Philips Lumileds LEDs and a Meanwell HLG-480H driver, supports 0-10V dimming, and is rated IP65/IP65 for harsh environments. The luminaire delivers 63,500 lm (140 lm/W efficacy), has a Type_i beam 30°x100° and a rated lifespan of 80,000 hours with a 5-year warranty. Standard input 120-277V (347–488V optional).

Features
  • Philips Lumileds LEDs
  • Meanwell HLG-480H LED driver
  • Dimmable via 0-10V control
  • IP65 ingress protection for outdoor/high‑mast use
  • Tempered glass lens and IK08 impact resistance


Product Specifications
Product SKU : JNHM1-450S-4000-A1-DIM
Power Consumption : 450 W
System Power (W) : 495 W
Input Voltage : 120-277V AC (347~488V AC optional)
Beam Angle (°) : 30°x100° (Type_i)
IP Rating : IP65
Color Rendering Index : >70
LED Type : Philips Lumileds
Color Temperature (K) : 4000
IK Impact Rating : IK08
Dimming Capability : 0-10V
Housing Colour : Marine-Grey
Warranty Period (Years) : 5
Power Factor : >0.95
Surge Protection : 10kV
Input Cable : H07RN-F 3G1.0
Working Temperature Range : -20°C ~ 45°C
Working Humidity Range : 10%-95% RH
Lifespan (Hours) : 80,000 hours
Total Lumens Output : 63,500 lm
Efficacy (lm/W) : 140 lm/W
Number of LED Modules : 4 modules
LED Driver Brand : Meanwell HLG-480H
Lens Material : Tempered Glass
Fixture Height (mm) : 854 mm
Fixture Length (mm) : 610 mm
Fixture Width (mm) : 238 mm

Packaging & Shipping
Net Weight (kg) : 30 kg
Export Carton Dimensions (mm) : 900×700×320 mm
Products per Carton : 2
Export Carton Gross Weight (kg) : 34 kg

Technical specifications
  • SKU: JNHM1-450S-4000-A1-DIM
  • Power: 450 W (system power 495 W)
  • Input voltage: 120-277V AC (347~488V AC optional)
  • LEDs: Philips Lumileds
  • Driver: Meanwell HLG-480H
  • Dimming: 0-10V
  • Beam: 30°x100° (Type_i)
  • Luminous output: 63,500 lm; efficacy 140 lm/W
  • IP/IK rating: IP65 / IK08
  • Colour temp: 4000 K; CRI >70
  • Operating temp: -20°C to 45°C; humidity 10%-95% RH
  • Lifespan: 80,000 hours
  • Surge protection: 10 kV
  • Warranty: 5 years
  • Housing colour: Marine-Grey; lens: tempered glass
  • Dimensions (H×L×W): 854 × 610 × 238 mm
  • Net weight: 30 kg
