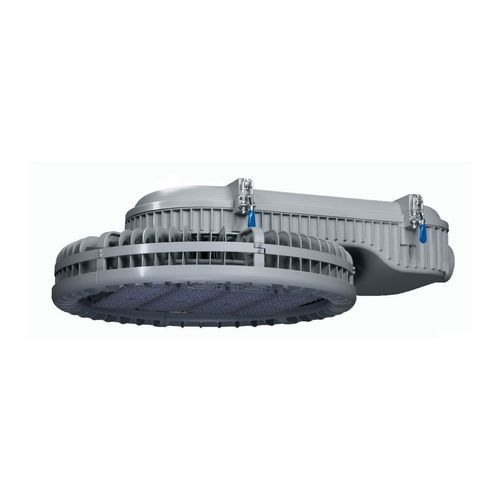

IP65 floodlight JNHM1-450S-3000-A4-ND

LEDindustrialoutdoor

Short description
450 W LED high-mast floodlight JNHM1-450S-3000-A4-ND designed for industrial exterior lighting. Warm white 3000K output with Philips Lumileds LEDs and Meanwell HLG-480H driver. Fixed Type LV beam 30°x140° and IP65 protection make it suitable for outdoor high-mast installations. Non-dimmable, high efficacy and long service life.

Features

• Warm white 3000 K colour temperature
• Original Philips Lumileds LEDs
• Meanwell HLG-480H LED driver
• Non-dimmable
• Ingress protection: IP65
• Impact rating: IK08
• High efficacy 140 lm/W, total lumen output 63,500 lm
• Surge protection: 10 kV
• Long lifespan: 80,000 hours

Product specifications
Product SKU: JNHM1-450S-3000-A4-ND
Power Consumption: 450 W
System Power: 495 W
Input Voltage: 120-277 V AC (standard) / 347-488 V AC (optional)
Input Current Range: 120-277
Beam Angle (°): 30° x 140° (fixed, Type LV)
IP Rating: IP65
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Color Temperature (CCT): 3000 K (warm white)
IK Impact Rating: IK08
Dimming Capability: Non-dimmable
Housing Colour: Marine-Grey
Power Factor: >0.95
Surge Protection: 10 kV
Input Cable: H07RN-F 3G1.0
Operating Temperature: -20°C to 45°C
Operating Humidity: 10%–95% RH
Lifespan: 80,000 hours
Number of LED Modules: 4 modules
LED Driver Brand: Meanwell HLG-480H
Lens Material: Tempered glass
Fixture Dimensions (H×L×W): 854 mm × 610 mm × 238 mm
Total Lumen Output: 63,500 lm
Efficacy: 140 lm/W

Packaging & Shipping
Net Weight (kg): 30 kg
Export Carton Dimensions (mm): 900 × 700 × 320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 34 kg
Fixture Height (mm): 854
Fixture Width (mm): 238
Fixture Length (mm): 610

Technical specifications

• Model / Series prefix: JNHM1
• Power: 450 W (system power 495 W)
• Input voltage options: 120-277 V AC (standard), 347-488 V AC (optional)
• Beam: 30° x 140° fixed (Type LV)
• LEDs: Philips Lumileds
• Driver: Meanwell HLG-480H
• CRI: >70
• CCT: 3000 K (warm white)
• IP Rating: IP65
• IK Rating: IK08
• Efficacy: 140 lm/W, Total output 63,500 lm
• Lifespan: 80,000 hours
• Surge protection: 10 kV
• Operating temperature: -20°C to 45°C
• Warranty: 5 years
• Housing colour: Marine-Grey
