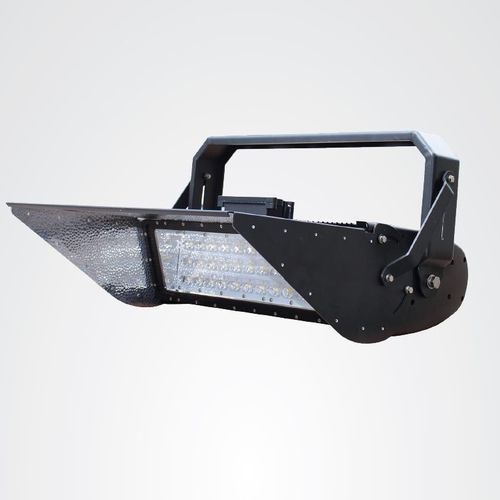

IP65 floodlight JNHM2-1250S-5000-A5-ND

LEDoutdoorpole-mounted

High-power 1250 W LED high-mast floodlight in cool white (5000 K), designed for far, medium and short throw distributions. Non-dimmable and IP65 rated for outdoor installations. Uses Philips Lumileds LED modules with Meanwell drivers; tempered glass lens and marine-grey housing.

Features

• Power: 1250 W nominal consumption; system power listed as 1295 W.
• Light source: Philips Lumileds LED modules (8 modules).
• Color temperature: 5000 K (cool white).
• High lumen output: 143,500 lm; efficacy 120 lm/W.
• Outdoor protection: IP65 and IK08 impact rating.
• Driver: Meanwell HLG-1000H.
• Surge protection: 10 kV.
• Lens: tempered glass.
• Housing colour: Marine-Grey.
• Service life: rated 80,000 hours; warranty 5 years.

Technical specifications

• Product SKU: JNHM2-1250S-5000-A5-ND
• Power Consumption: 1250 W
• System Power (W): 1295 W
• Total Lumens Output: 143,500 lm
• Efficacy (lm/W): 120 lm/W
• Input Voltage / Input Voltage Range: 120-277 V AC (standard); 120-277 V AC / 347~488 V AC (optional)
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell HLG-1000H
• Number of LED Modules: 8 modules
• Color Temperature (K): 5000
• Color Rendering Index (CRI): >70
• Beam Angle (°): 60°
• Beam Angle Range: 15°x15° (Fixed)
• Beam Angle Format: Symmetric
• Dimming Capability: Non-dimmable
• Power Factor: >0.95
• Surge Protection: 10 kV
• Input Cable: H07RN-F 3G2.5
• Lens Material: Tempered Glass
• IP Rating: IP65
• IK Impact Rating: IK08
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 95% RH
• Lifespan (Hours): 80,000 hours
• Fixture Height (mm): 550 mm
• Fixture Length (mm): 480 mm
• Fixture Width (mm): 320 mm
• Housing Colour: Marine-Grey
• Warranty Period (Years): 5
• System-level note: replaces 100 Watt metal halide / HID / HPS in specified applications (as stated by manufacturer)
