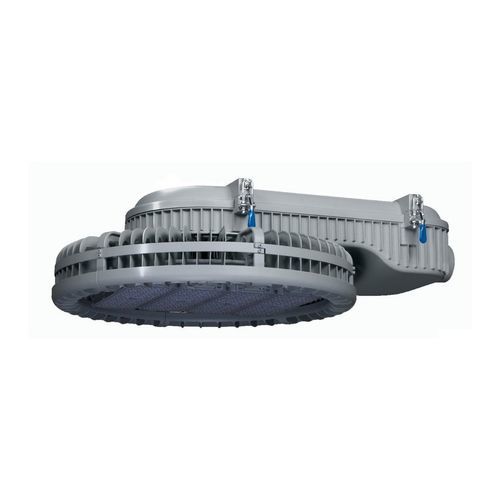

IP65 floodlight JNHM1-450S-5000-A1-DIM
LEDfor stadiumoutdoor

IP65 floodlight - JNHM1-450S-5000-A1-DIM - JNLED - LED / for stadium / outdoor
IP65 floodlight - JNHM1-450S-5000-A1-DIM - JNLED - LED / for stadium / outdoor
IP65 floodlight - JNHM1-450S-5000-A1-DIM - JNLED - LED / for stadium / outdoor - image - 2
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
for stadium
Interior/exterior use
outdoor
Type
pole-mounted
Shape
rectangular
Dimmable
dimmable
Other characteristics
IK08
Height

Min.: 854 mm
(34 in)

Max.: 854 mm
(34 in)

Length

Min.: 610 mm
(24 in)

Max.: 610 mm
(24 in)

Width

Min.: 238 mm
(9 in)

Max.: 238 mm
(9 in)

Power

Min.: 450 W
(0.61 hp)

Max.: 495 W
(0.67 hp)

Luminous flux

Min.: 63,500 lm

Max.: 63,500 lm

Color temperature

Min.: 5,000 K

Max.: 5,000 K

Color rendering index (CRI)

Min.: 70 unit

Max.: 100 unit

Description

Short description
450 Watt LED flood light equipped with original Philips Lumileds and Meanwell HLG-480H driver(s). Dimmable via 0-10V. IP65 rated for outdoor installations. Replaces 100 Watt metal halide/HID/HPS luminaires. Suitable for high-mast and area lighting applications.

Product Specifications (table)
Product SKU: JNHM1-450S-5000-A1-DIM
Power Consumption: 450 W
System Power: 495 W
Input Voltage: 120-277V AC (optional 347~488V AC)
Beam Angle (°): 30°x100° (Type_i, fixed)
IP Rating: IP65
IK Impact Rating: IK08
Color Rendering Index: >70
LED Type: Philips Lumileds
Color Temperature (K): 5000 K
Dimming Capability: 0-10V
Housing Colour: Marine-Grey
Warranty Period (Years): 5
Power Factor: >0.95
Surge Protection: 10kV
Input Cable: H07RN-F 3G1.0
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-95% RH
Lifespan (Hours): 80,000 hours
Beam Angle Range: 30°x100° (Fixed)
Beam Angle Format: Type_i
Number of LED Modules: 4 modules
LED Driver Brand: Meanwell HLG-480H
Lens Material: Tempered Glass
Total Lumens Output: 63,500 lm
Efficacy (lm/W): 140 lm/W
Fixture Dimensions (H×L×W): 854×610×238 mm
Fixture Height (mm): 854 mm
Fixture Length (mm): 610 mm
Fixture Width (mm): 238 mm

Packaging & Shipping
Net Weight (kg): 30 kg
Export Carton Dimensions (mm): 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 34 kg

Specification summary
450 Watt LED flood light with Philips Lumileds and Meanwell driver(s). Dimmable 0-10V, IP65, 30°x100° Type_i beam, 63,500 lm total output. Designed for high-mast and area lighting.

Technical features
  • SKU: JNHM1-450S-5000-A1-DIM
  • Power Consumption: 450 W
  • System Power: 495 W
  • Input Voltage: 120-277V (optional 347~488V)
  • Beam Angle: 30°x100° (Type_i, fixed)
  • IP Rating: IP65
  • IK Rating: IK08
  • CRI: >70
  • LED Type: Philips Lumileds
  • LED Driver: Meanwell HLG-480H
  • Color Temperature: 5000 K
  • Dimming: 0-10V
  • Power Factor: >0.95
  • Surge Protection: 10kV
  • Lens Material: Tempered Glass
  • Number of LED Modules: 4
  • Total Lumens: 63,500 lm
  • Efficacy: 140 lm/W
  • Lifespan: 80,000 hours
  • Working Temp: -20°C to 45°C
  • Working Humidity: 10%-95% RH
  • Housing Colour: Marine-Grey
  • Fixture Dimensions (H×L×W): 854×610×238 mm
  • Net Weight: 30 kg
  • Warranty: 5 years
