IP65 floodlight JNHM1-450S-4000-A4-ND
LEDfor sports fieldsfor stadium

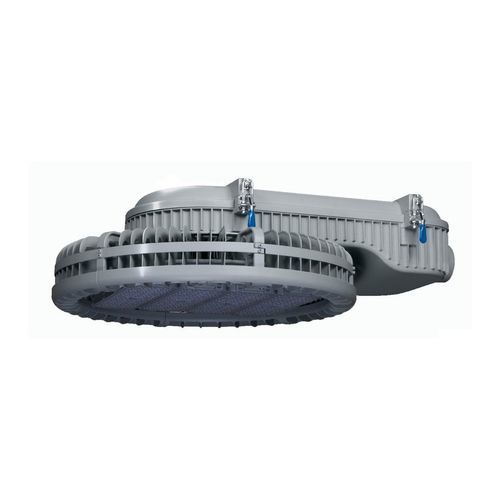

IP65 floodlight - JNHM1-450S-4000-A4-ND - JNLED - LED / for sports fields / for stadium
IP65 floodlight - JNHM1-450S-4000-A4-ND - JNLED - LED / for sports fields / for stadium
IP65 floodlight - JNHM1-450S-4000-A4-ND - JNLED - LED / for sports fields / for stadium - image - 2
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
for sports fields, for stadium, industrial
Interior/exterior use
outdoor
Type
pole-mounted
Shape
rectangular
Dimmable
dimmable
Other characteristics
high-efficiency, IK08
Height

Max.: 854 mm
(34 in)

Min.: 854 mm
(34 in)

Length

Max.: 610 mm
(24 in)

Min.: 610 mm
(24 in)

Width

Max.: 238 mm
(9 in)

Min.: 238 mm
(9 in)

Power

Max.: 495 W
(0.67 hp)

Min.: 450 W
(0.61 hp)

Luminous flux

Max.: 63,500 lm

Min.: 63,500 lm

Color temperature

Max.: 4,000 K

Min.: 4,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Short description
High-mast LED floodlight designed for stadiums, ports, industrial yards and large outdoor areas. Equipped with Philips Lumileds LEDs and Meanwell HLG-480H driver, 450W nominal (system power 495W), natural white 4000K, dimmable (0-10V), IP65 and IK08 for outdoor heavy-duty use.

Features
  • Dimmable (0-10V)
  • Philips Lumileds LEDs
  • Meanwell HLG-480H driver
  • IP65 ingress protection
  • IK08 impact rating
  • Colour temperature: 4000K, CRI >70
  • Efficacy: 140 lm/W; Total lumens: 63,500 lm
  • Expected lifespan: 80,000 hours
  • Surge protection: 10kV


Product specifications
Product SKU: JNHM1-450S-4000-A4-DIM
Power consumption: 450 W (system power 495 W)
Input voltage: 120-277V AC (347~488V AC optional)
Beam angle: 30°x140° (fixed, Type_i)
IP rating: IP65
IK rating: IK08
LED type: Philips Lumileds
Color temperature: 4000 K
CRI: >70
Total lumens: 63,500 lm
Efficacy: 140 lm/W
Number of LED modules: 4
LED driver: Meanwell HLG-480H
Power factor: >0.95
Surge protection: 10kV
Lens material: Tempered glass
Housing colour: Marine-Grey
Dimming capability: 0-10V
Input cable: H07RN-F 3G1.0
Working temperature: -20°C to 45°C
Working humidity: 10%-95% RH
Lifespan: 80,000 hours
Fixture dimensions (HxLxW): 854 x 610 x 238 mm
Net weight: 30 kg

Packaging & Shipping
Net weight (kg): 30 kg
Export carton dimensions (mm): 900×700×320 mm
Products per carton: 2
Export carton gross weight (kg): 34 kg

Technical specifications
  • Power: 450 W (system 495 W)
  • Total lumens: 63,500 lm; Efficacy: 140 lm/W
  • LEDs: Philips Lumileds (4 modules)
  • Driver: Meanwell HLG-480H
  • Dimming: 0-10V
  • Voltage: 120-277V AC (347~488V AC optional)
  • Ingress protection: IP65; Impact rating: IK08
  • CRI: >70; Colour temperature: 4000K
  • Lens: Tempered glass; Housing: Marine-Grey
  • Power factor: >0.95; Surge protection: 10kV
  • Operating temperature: -20°C to 45°C; Humidity: 10%-95% RH
  • Expected lifetime: 80,000 hours
  • Dimensions (HxLxW): 854 x 610 x 238 mm; Net weight: 30 kg
